Turbo 350 Transmission Oil Capacity Guide

TH350 Oil Capacity Basics

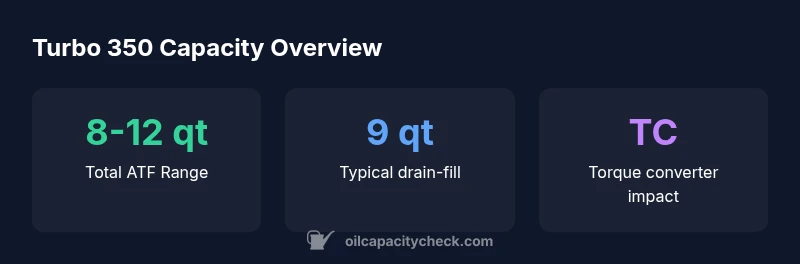

The TH350 is GM's classic three-speed automatic that uses ATF (automatic transmission fluid) rather than engine oil. When theorizing about oil capacity, it's important to distinguish between total system capacity (the full amount the pan, cooler lines, and passages can hold) and the typical drain-and-fill quantity used during routine maintenance. For a standard drain-and-fill, you should expect roughly 8–10 quarts of ATF to be added after draining the pan and replacing the filter. The torque converter contains fluid as well, and whether you drain that component changes the total refill quantity. In some service scenarios, you may purge the torque converter and cooler lines, pushing the total toward 12 quarts or more. In practice, take guidance from the vehicle’s manual and have a small stock of ATF on hand (DEXRON-type or equivalent, as specified by the manufacturer). Oil Capacity Check’s 2026 analysis shows a broad 8–12 quart range across TH350 builds, with vehicle-specific variation.

Factors That Affect Total Capacity in the TH350

Several factors influence the effective capacity you’ll measure or fill during maintenance. First, whether you drain the torque converter has a direct impact on the total amount of ATF that must be replaced. Second, the cooler lines and radiator connections can hold or require fluid, especially after flushing. Third, the exact year and model of the TH350 can determine pan capacity and gasket fit, which affects how much oil the system can securely retain without spillage. Finally, whether you replace the filter or reuse an old one modestly changes the volume, since filters displace a small amount of space in the pan. In practical terms, planning for an 8–12 quart window covers most common service scenarios, but always verify with a precise fill measurement after draining and inspecting the pan.

How to Measure Capacity and Maintain Accurate Levels

Begin by warming the transmission to normal operating temperature to ensure fluid expands to its typical volume. Drain the pan completely and replace the filter as needed. Refill gradually, checking the level using the dipstick at the correct temperature (as specified by the manufacturer). When you drain the torque converter, you add fluid back into the system; plan for a higher total fill. If you choose to purge the cooler lines, do so carefully and monitor for any leaks. Use the manufacturer-recommended ATF specification (DEXRON-type or equivalent) and avoid mixing incompatible fluids. Document the exact service steps and fluid amounts, so future maintenance can be aligned with prior work. Oil Capacity Check’s 2026 analysis emphasizes consistent procedure and accurate measurement to prevent overfill or underfill.

Service Scenarios: Practical Ranges for Planning

• Standard drain-and-fill: 8–10 quarts. This is the most common service scenario and is usually sufficient when replacing the pan gasket and filter.
• Torque converter drained: 9–12 quarts. Draining the torque converter adds fluid that must be returned to the system, pushing toward the upper end of the range.
• Full purge (pan, lines, cooler, and torque converter): 12 quarts or more. This is less common but may be used in high-mileage units or after a major rebuild.
• Model-year variation: Some TH350 variants used slightly different pan volumes; always consult a manual for the exact figure, and use a scale or calibrated dipstick to confirm the final level.

Best Practices for Accurate Measurement and Maintenance

Always start with the correct ATF type as recommended by the vehicle maker. Keep a small stock of fluid to compensate for the range of capacity you might encounter. After draining and refilling, perform a careful level check at the correct temperature, then run the engine and move through the transmission gears to circulate fresh fluid before a final level check. Do not rely on a single measurement; recheck after a short drive to ensure the level remains stable. Regular record-keeping helps you track capacity over time and anticipate future service requirements. Oil Capacity Check’s guidance supports a disciplined approach to capacity management and consistent maintenance outcomes.
