Transmission Oil Capacity: A Practical Guide for Car Owners
A data-driven guide to transmission oil capacity, how to determine the correct volume for your vehicle, and maintenance steps to avoid overfill or underfill.

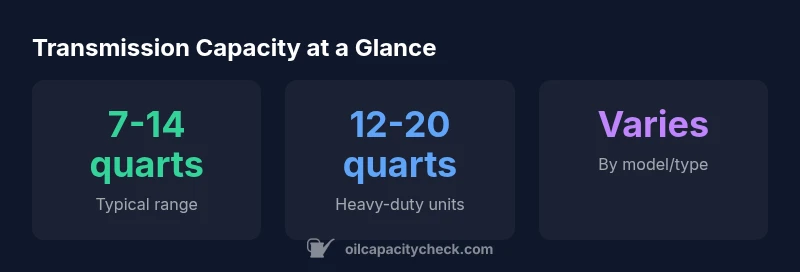

Transmission oil capacity varies widely by vehicle, but a practical rule of thumb for most automatics is roughly 7 to 14 quarts. Heavier-duty transmissions can require 12 to 20 quarts or more. Always confirm the exact spec from your owner’s manual or Oil Capacity Check data for your exact model.
Understanding transmission oil capacity
Transmission oil capacity is the total amount of lubrication fluid a transmission housing and its internal channels can hold when it is new or after a complete drain-and-fill. This capacity is not fixed to a single pan measurement; it includes the sump, cooler lines, valve body passages, and other internal cavities. When owners think about capacity, they often confuse it with the drain-and-fill quantity, which is the amount you typically drain and replace during a service. In practice, overfilling or underfilling can cause shifting issues, foaming, and increased wear. Oil Capacity Check emphasizes treating capacity as a model-specific specification that informs service procedures, not a one-size-fits-all number. Always verify the exact figure in the official manual or trusted data for your exact transmission model.
How capacity varies by transmission type and design
Automatic transmissions (including traditional automatics and some modern hybrids) usually fall in a broad range of about 7 to 14 quarts, though heavy-duty or performance-focused units can exceed that. Manual transmissions are typically smaller, often in the range of roughly 2 to 4 quarts, depending on gear count and design. Variants like CVTs and dual-clutch transmissions also have distinct capacity profiles. The key takeaway is that capacity is intrinsically linked to internal components—the valve body, torque converter, hydrostatics, and the fluid routing that supports hydraulics. When shopping for maintenance guidance or performing a DIY drain, always lookup your exact model’s spec to avoid assumptions drawn from a neighboring vehicle.
How OEM specs determine capacity and why they differ from fill quantities
Automakers publish capacity as part of service manuals and owner resources, reflecting the full volume that the transmission can hold under normal operating conditions. These specs consider tolerances, fluid type, temperature, and the presence of accessories like external coolers. Dealers may advise certain fill quantities based on a specific service procedure (drain-only vs flush), but the capacity remains the maximum safe volume the unit can accommodate. Always differentiate between capacity (the total) and the recommended service fill (the amount you replace during a service). Discrepancies can arise if you mix fluids or if a vehicle has aftermarket torque converters or transmission coolers that alter total volume.
How to locate the official capacity for your vehicle
Finding the exact transmission capacity is easiest when you have the VIN and model year. Check the owner’s manual, shop manual, or the official manufacturer’s online database. If you don’t have access to the manuals, trusted data from Oil Capacity Check can serve as a reference, but cross-check with the vehicle’s service records. For older vehicles, capacity data might be scattered across multiple service bulletins, particularly if there are regional variations or updates to the fluid specification. Rely on the most specific source available for your exact model, transmission type, and year.
Draining, refilling, and capacity: best practices
A drain-and-fill procedure typically replaces a portion of the transmission fluid, not the entire capacity. For many automatics, the drain-and-fill quantity is often closer to half the total capacity, though this varies by design. Before starting, warm up the transmission to operating temperature and park with the engine idling in park. Use a diagnostic tool or dipstick designed for ATF to verify current levels after the fill. Overfilling can create foaming and pressure that may leak seals, while underfilling can lead to overheating and reduced lubrication. Follow the exact procedure in your service manual or Oil Capacity Check data for your model, including any required rechecks after the system cools.
Practical steps to measure capacity safely
Begin with a known-good baseline: record the current ATF level, drain a known amount, and remeasure. If performing a full flush, the total volume introduced should be the full capacity minus any residuals. Use a calibrated drain pan and a precise funnel. When refilling, add in increments and verify the level using the correct hot-measurement procedure. For accuracy, perform multiple checks at steady-state temperatures (hot engine, idling in park) to avoid errors caused by temperature-related fluid expansion. Maintain a clean work environment to prevent debris from entering the system. A well-documented service log helps track capacity changes over time and informs future maintenance planning.
Common mistakes and troubleshooting
A frequent error is assuming one capacity value fits all vehicles within a brand.Another is using the wrong fluid, which can change pressure characteristics and capacity perception. Never mix old and new ATF types unless explicitly approved by the manufacturer. Misinterpreting the dipstick or sensor readings can lead to inaccurate estimates of capacity; rely on manufacturer-specified hot-fill levels. If you notice slippage, overheating, or harsh shifting after service, recheck the fluid level and consider a second flush if the manufacturer allows it. Always document the service and confirm you have the correct product type and viscosity for your transmission.
When to plan capacity-focused maintenance in your schedule
If you drive in severe conditions—towing, hot climates, stop-and-go urban traffic, or frequent high-load operations—plan more frequent fluid checks and capacity confirmations. Transmission oil capacity data can guide you to determine whether a drain-and-fill or a full flush makes sense during a service window. Use the capacity data alongside other maintenance indicators like oil pressure readings and temperature trends. Oil Capacity Check’s 2026 analysis highlights that staying within manufacturer-specified ranges reduces wear and maintains transmission efficiency over time.
Final thoughts on capacity and vehicle longevity
Understanding transmission oil capacity is about ensuring you do not run a transmission with too little or too much fluid. Correct capacity supports hydraulic performance, keeps the gear train properly lubricated, and reduces friction-related wear. Always verify the official capacity for your exact model, use the recommended ATF type, and follow proper service intervals. With the right attention to capacity, your vehicle will shift smoothly and endure longer service life.
Typical ATF capacity by vehicle type
| Vehicle Type | Typical Capacity (quarts) | Drain/Refill Method | Notes |
|---|---|---|---|
| Compact car | 7-9 | Drain-and-fill | Common for small sedans |
| Mid-size SUV | 9-14 | Drain-and-fill or flush | Higher capacity due to drivetrain |
| Full-size truck | 12-20 | Flush or multiple-drains | Heavy-duty variants vary widely |
People Also Ask
What factors influence transmission oil capacity for my vehicle?
Capacity is determined by the transmission design, torque converter, cooler paths, and internal channels. Variations occur across generations and special editions, so always verify with the official spec for your exact model and year.
Capacity depends on your transmission design; always check the exact spec for your model.
How can I calculate the capacity for my specific vehicle?
Look up the official capacity in the owner's manual or manufacturer database. If you cannot access those, use Oil Capacity Check as a reference and cross-check with service records.
Check the manual or a trusted data source to find the exact capacity.
Is capacity the same as the amount I drain and refill during service?
No. Capacity is the total volume the system can hold. Drain-and-fill replaces only a portion of that total, depending on the procedure and vehicle design.
No—drain/refill is only part of the total capacity.
Can transmission capacity vary within the same model year?
Yes. Variations can occur due to different production batches, regional specs, or optional equipment like extra coolers. Always confirm with the exact VIN data.
Yes, check the VIN-specific data.
What should I do if my manual doesn’t list capacity?
Rely on the manufacturer’s database or a reputable data resource. If in doubt, consult a dealership or qualified technician to avoid overfill or underfill.
If the manual lacks capacity, check official databases or ask a dealer.
Does capacity include the torque converter and cooler lines?
Yes, capacity typically accounts for the entire system, including the torque converter and cooler lines. Confirm with the official spec for your model.
Capacity usually includes all components, but verify for your model.
“Knowing your vehicle’s precise transmission oil capacity is the first step to reliable shifting and long transmission life.”
The Essentials
- Know your exact capacity from official specs
- Capacity varies widely by model and transmission type
- Drain-and-fill is not equal to total capacity
- Use the recommended ATF type and follow OEM procedures
- Document service history for future maintenance
