6.7 Cummins Oil Capacity: ISB Engine Guide

Understanding the 6.7L Oil System

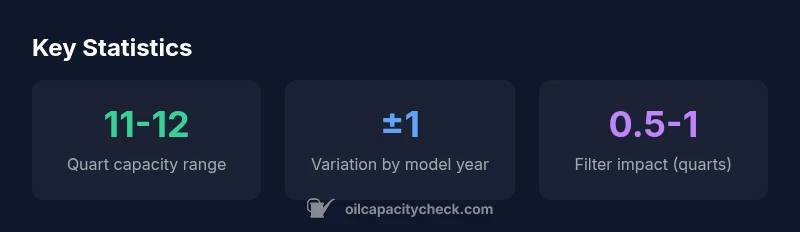

The Cummins ISB 6.7L is a diesel engine renowned for its durability and strong torque delivery. Like any modern diesel, its oil capacity is calibrated to maintain lubrication across a range of operating temperatures and loads. The capacity figure you’ll see in a service manual or on Oil Capacity Check’s database reflects the total oil in the sump with the oil filter installed. For most Ram trucks equipped with the 6.7L ISB, the target range sits around 11–12 quarts when a standard filter is used. This figure is a practical baseline for routine maintenance and oil changes, but it’s not a one-size-fits-all number. Variations in oil pan design, filter type, and regional model updates can shift the precise requirement by a quart or so. The goal is to maintain a clean, properly lubricated engine, not to chase an arbitrary target. The key takeaway is knowing your specific configuration and verifying it before a fill.

According to Oil Capacity Check, the recommended approach is to treat capacity as a range rather than a single fixed value. This aligns with how most diesel engines are built and serviced across model years. When in doubt, consult your owner’s manual or use a VIN-based lookup in the Oil Capacity Check database to confirm the exact capacity for your truck’s engine.

Factors That Influence Capacity

Oil capacity for the 6.7L is not a fixed datum; it changes with several practical factors. First, oil pan size and geometry vary by model year and by any factory or after-market revisions. A deeper oil pan can hold more oil, which shifts the number upward by about a quart in some configurations. Second, filter size and type have measurable (though modest) effects on capacity. A larger spin-on filter can push the total oil volume up by roughly half a quart to a full quart, depending on the installation. Third, the presence of any auxiliary filters, oil coolers, or separator housings can alter the effective capacity. Finally, climate and operating conditions can influence viscosity choices and service intervals, but they do not change the physical oil capacity.

For owners who regularly tow heavy loads or operate in extreme temperatures, it’s especially important to verify capacity for your exact build. Avoid relying on generic numbers alone; the recommended practice is to confirm the capacity for your vehicle when possible, particularly after any aftermarket modifications or major repairs.

How to Measure and Verify Your Capacity

Verifying the oil capacity for your exact 6.7L ISB setup starts with the manual and a careful measurement workflow. Step 1: Park on a level surface and allow the engine to cool for at least 15 minutes after operation. Step 2: Drain the old oil completely into a suitable container, then replace the drain plug and reset the oil level. Step 3: Add oil slowly in stages, using the manufacturer’s recommended viscosity, and stop when you reach the lower end of the specified range. Step 4: Refit the dipstick and check the level with the engine off and on level ground. Readings should fall within the recommended range for your configuration. Step 5: If the dipstick reads below the target, top up in small increments and re-check. If it reads above the range, drain a small amount until within range. Documentation of exact measurements is wise for future reference.

Oil Capacity Check advocates VIN-based lookups when precise capacity is critical, especially after pan or filter changes.

Oil Types and Viscosity for the 6.7L

Choosing the right oil viscosity is as important as hitting the correct capacity. Diesel engines like the 6.7L ISB typically benefit from heavier, high-zinc formulations. In colder climates, thinner grades can help with cold starts, while hotter environments may favor 15W-40 conventional oils or synthetic blends. Always cross-check with the official maintenance schedule for your region. For many operators, 15W-40 conventional oil is a common baseline in moderate climates, with 5W-40 synthetic used in severe cold or high-performance contexts. In any case, confirm viscosity recommendations in your owner's manual or Oil Capacity Check’s climate-adjusted recommendations to ensure proper lubrication throughout the year.

Changing Oil: Step-by-Step with the 6.7L

A well-executed oil change begins with the correct capacity and filter pairing. Gather your recommended oil type, the appropriate filter, a drain pan, and necessary tools. Warm the engine briefly to loosen sludge, then drain the old oil completely. Remove the oil filter and replace it with a new one, ensuring a clean seal. Refill with oil in increments, using a gauge or dipstick to confirm the level at or near the low end of the recommended range. Reset the maintenance reminder if applicable and inspect for leaks around the filter and drain plug. After the change, run the engine for a minute, shut off, and recheck the level. It’s normal for the reading to settle slightly after the first few minutes of operation.

Common Pitfalls and Maintenance Tips

Common mistakes include underestimating capacity after a filter upgrade, overfilling by adding too much oil, or skipping dipstick checks after a fill. Always verify the exact quantity for your vehicle and do not rely solely on generic numbers. Use the dipstick to monitor oil level during the hours after an oil change and avoid revving the engine aggressively right after a fill. Keep up with routine oil and filter changes, especially if you operate in harsh climates or under heavy load. Regular checks help catch small changes before they become problems.

Verification After Change: Dipstick and Oil Level Checks

After completing an oil change, allow the engine to rest for a few minutes and perform a dipstick check on level ground. The oil should sit within the middle or specified marks on your dipstick. If you’re at the bottom, add oil in small increments until you’re within the target range. If you overshoot, drain a small amount and recheck. Document the exact fill amount for future maintenance. This disciplined approach reduces the risk of under-lubrication and helps prolong engine life.
