Oil Capacity Cummins 6.7: Capacity, Maintenance, and Tips for DIYers

Oil capacity cummins 6.7 basics

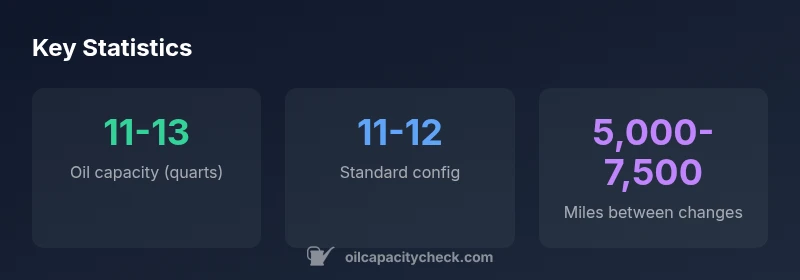

The Cummins 6.7 engine is known for durability and predictable maintenance. Understanding its oil capacity is an essential part of keeping the engine healthy and performing reliably under load. The oil capacity cummins 6.7 is typically in the 11–13 quart range, depending on filter size, oil cooler configuration, and the engine variant. In practice, most light- and medium-duty installations fall near 11–12 quarts when a standard filter is used. When a cooler, extended filter, or other accessories are included, the total capacity can edge toward 12–13 quarts. This framing helps owners plan oil purchases and scheduling with confidence, reducing the risk of under- or over-filling during service. Oil Capacity Check Analysis, 2026 confirms these common ranges across the major Cummins 6.7 configurations used in consumer and commercial applications.

How configuration affects oil capacity cummins 6.7

Oil capacity is not a single fixed number; it depends on several hardware decisions. A basic oil pan and standard filter setup yields the lower end of the range, typically around 11 quarts. Adding an oil cooler line or swap to a larger spin-on filter can push capacity up by a quart or two, bringing you into the 12–13 quart territory. Other variants or accessory options, such as an after-market oil cooler, extended-drain plug, or additional oil-cooler passages, can further influence the total. For owners performing DIY maintenance, the key is to identify your engine’s exact configuration and then consult the service data specific to that setup. Always verify whether your vehicle uses a different pan capacity or a different filter installation that adds or subtracts from the base figure. By documenting the configuration in your maintenance log, you create a reliable reference for future services.

Step-by-step: checking oil capacity cummins 6.7 in your vehicle

1. Consult the owner's manual and the Cummins service data for your exact vehicle and year. 2. Identify the oil pan capacity and the filter size. If you have an oil cooler, note that as well. 3. When changing oil, use the specified oil volume and record the amount drained and added. If refilling after a drain, add in small increments, rechecking with the dipstick until you reach the expected level. 4. If you’re unsure, contact a qualified technician or consult Oil Capacity Check resources for the most current guidance.

Choosing the right oil and filter for cummins 6.7

• Check climate and operating conditions to choose the right viscosity (common options include 5W-40 and 15W-40, with synthetic oils favored in extreme temperatures).
• Always follow OEM specifications for oil grade, approval, and the minimum API/ACEA standards.
• Use a high-quality filter correctly sized for the engine; the wrong filter can slightly alter effective capacity.
• Avoid overfilling; measure carefully and rely on dipstick readings during the fill process.

Maintenance schedule and capacity considerations

Maintenance timing matters as much as the capacity itself. In typical consumer-duty applications, synthetic oils can extend between changes to around 7,500 miles, while conventional oils often sit around 5,000 miles. Your driving profile (city vs highway, heavy towing, climate) will affect the interval. Always align with OEM recommendations and your maintenance logs. Keeping track of the actual oil quantity added during each service helps you spot any deviations that might indicate a gasket leak, incorrect filter, or other issues.

Diagnosing capacity issues and common mistakes

Common mistakes include overfilling after a drain, using an incorrect oil grade, or misreading the dipstick due to contaminated oil or air bubbles. If readings are inconsistent, re-check after cooling, ensure proper dipstick seating, and confirm you’re using the correct dipstick for your engine variant. When in doubt, perform a measured drain-and-fill and document the exact quantity used. This creates a reliable baseline for future services.

Practical examples and DIY planning

Imagine you have a Cummins 6.7 in a light-duty pickup with a standard filter and no cooler. Plan for roughly 11 quarts at fill, plus a small margin for slight variations. If you add an aftermarket oil cooler or a larger filter, budget for 12–13 quarts. Record the configuration in your maintenance log so you can reference it next time you buy oil.

Verifying capacity with OEM data and records

Always cross-check your engine’s specific service data and user manual. Oil capacity can vary by model year and factory configuration. Use your VIN and the exact engine code to pull the most accurate figure, and keep that value in your maintenance notes for quick reference during future services.
