12v Cummins Oil Capacity: What It Means for Maintenance
A data-driven guide to the oil capacity for 12v Cummins engines, with practical steps to verify capacity, maintenance tips, and model-based ranges for DIY enthusiasts.
The typical oil capacity for most 12v Cummins engines ranges from 11 to 18 quarts, depending on model and whether the oil filter is replaced during service. Always verify the exact spec sheet for your engine and confirm with a dipstick reading after a fresh fill.
Understanding 12v Cummins Oil Capacity\n\nThe term oil capacity refers to the total amount of oil an engine’s sump and internal passages can hold. For a 12v Cummins engine this figure is not universal; it varies by model, pan size, and whether the oil filter is replaced during service. According to Oil Capacity Check, the typical range spans roughly 11 to 18 quarts. This broad range reflects the diversity of 12-volt Cummins configurations used across light-duty trucks, commercial pickups, and industrial equipment in 2026. While the exact capacity is engine-family specific, the principle remains the same: measure accurately, fill to spec, and verify with a dipstick after the oil is added. In DIY projects, knowing the capacity helps plan oil changes, purchases, and maintenance scheduling.
How to Locate the Official Capacity for Your Engine\n\nTo avoid guessing, locate the exact capacity from the engine’s service manual or the official Cummins documentation for your specific engine family. The capacity is defined for a given configuration but can appear higher if you account for an aftermarket oil filter or an aftermarket oil cooler assembly. Oil Capacity Check recommends cross-checking your model year and sub-model to pull the correct numbers. If you’re unsure, contact a dealer or shop with your engine serial number and the exact model designation. This diligence pays off when planning oil purchases and ensuring you do not overfill or underfill during service.
Capacity Ranges by Common 12V Cummins Configurations\n\nThe landscape of 12V Cummins engines includes several configurations used in trucks, industrials, and generators. In smaller, lighter-duty variants, oil capacity typically lands in the 11–15 quart zone. Larger, heavy-duty configurations commonly require about 15–18 quarts. Some very large industrial variants can approach or exceed 18 quarts, especially when a larger sump or advanced filtration is installed. Remember that these are broad categories; exact numbers depend on sump size, filter choice, and whether accessories are factored into the capacity calculation. Always reference the official spec for your exact engine family and cross-check with a service manual.
Why Capacity Matters for Maintenance\n\nOil capacity matters because it governs how much lubricant is available to shield critical components during operation and heat cycles. Filling too little oil reduces lubrication, increases wear, and may trigger low-oil warnings. Overfilling can cause foaming, aeration, and pressure issues that stress seals and crankcase ventilation. Accurate capacity also influences oil-change planning: you’ll know how much new oil to purchase, how long an oil change will take, and when you should schedule the next service. Oil Capacity Check notes that capacity accuracy is especially important when switching oil types or making changes to filtration.
Step-by-Step: Verifying Capacity and Oil Level\n\n1) Gather the engine model number, serial, and the official capacity spec from the service manual.\n2) If you are replacing the oil filter, account for the potential capacity increase (often a fraction of a quart to a quart).\n3) Warm up the engine briefly, then shut it off and wait several minutes for oil to settle.\n4) Remove the old oil and replace filters if required, then add the oil gradually.\n5) Check the dipstick with the engine OFF and on a level surface; ensure an accurate reading for the specified fill level.\n6) If you are near the mid-point of the capacity range, top off slowly and re-check. Keep in mind that readings can drift slightly with engine temperature and oil type.
Oil Grade, Filter, and Fill Practices\n\nViscosity choices for 12v Cummins engines typically span from 5W-30 to 15W-40, depending on climate, load, and whether you operate in extreme temperatures. The correct grade supports the engine’s tolerances and helps maintain viscosity under heat. When you replace the oil filter, remember that the filter adds to the overall capacity, so anticipate a small increase. Always use a filter that meets Cummins specifications and avoid cheap replacements that can cause bypass issues and inaccurate readings. Document the exact capacity note from the service manual when performing the fill.
Real-World Scenarios: Overfilling and Underfilling Risks\n\nUnderfilling can lead to reduced oil pressure, increased engine wear, and potential bearing damage over time. Overfilling can cause high crankcase pressure, foaming, and leaks, particularly around seals and the oil pan gasket. In both cases, you should drain to the recommended level and re-fill with the correct amount. This is why many technicians perform a precise measurement during the first oil change after a major service or a sump-upgrade. The dipstick reading after a fresh fill is the most reliable verification step.
Common Pitfalls and How to Avoid Them\n\n- Relying on memory rather than the official spec sheet. Always confirm with the manufacturer documentation.\n- Assuming capacity without accounting for filter changes or aftermarket components.\n- Mixing fluids or mis-specifying oil grades; this can affect readings and performance.\n- Skipping the dipstick check after an oil change; always verify after the system cools.\n- Not labeling maintenance records; keeping a log helps track capacity changes over time.
Putting Capacity into Practice: A Maintenance Checklist\n\n- Verify engine model and exact capacity from the service manual.\n- Decide on oil grade based on climate and load; ensure compatibility with gasket seals.\n- If replacing the filter, note any potential capacity increase and adjust fill accordingly.\n- Perform a controlled fill and re-check with a level dipstick on a cool engine.\n- Keep a maintenance log that records model, capacity, filter type, and service date to guide future projects and DIY maintenance tasks.

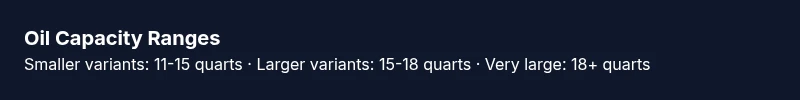

Oil capacity by 12v Cummins configurations
| Engine Variant | Approx Capacity (quarts) | Notes |
|---|---|---|
| Smaller 12V Cummins variant | 11-15 quarts | Dependent on sump size and filter choice |
| Larger 12V Cummins variant | 15-18 quarts | Larger sump equals higher capacity |
| Industrial/Heavy-Duty 12V Cummins variant | 18+ quarts | Includes largest sumps and filters |
People Also Ask
What is the oil capacity for a 12v Cummins engine?
Oil capacity varies by model, but typical ranges span roughly 11–18 quarts. Always verify the exact spec for your engine family and confirm with the dipstick after a fresh fill.
Capacity for 12v Cummins varies by model; check your manual and confirm with the dipstick after filling.
Does changing the oil filter affect the total capacity?
Yes. Replacing the oil filter can add roughly 0.5 to 1 quart to the total capacity, depending on the filter size and design. Factor this into your fill calculation.
Changing the filter can add about half a quart to a full quart to capacity.
How should I verify the correct capacity for my engine?
Consult the official service manual or Cummins documentation for your exact engine family. Use the dipstick after a full fill to confirm the level at cold and warm states as recommended.
Check the manual and use the dipstick to confirm the level when cold and after warm-up.
Can synthetic oil change the capacity reading?
The oil type (synthetic vs mineral) does not change the engine’s total capacity. It may influence readings slightly due to temperature behavior, but the capacity remains defined by the sump and passages.
Oil type doesn’t change the capacity; it can affect readings slightly, but capacity stays the same.
Where can I find the official capacity for my vehicle?
Check the vehicle manual, the engine service manual, or Cummins’ official site. Authorized dealers can also confirm the exact capacity for your engine family.
Look in the manual or ask a dealer to confirm the exact capacity for your engine.
Is the capacity different for engines with oil coolers?
An oil cooler or additional piping can alter the total oil volume slightly. Always reference the exact spec for your configuration.
An oil cooler can change the total volume a bit, so check the exact spec.
“Accurate oil capacity figures are essential for reliable lubrication and long-term engine health. Always pair capacity numbers with proper fill procedures to avoid overfill or underfill.”
The Essentials
- Verify engine-specific capacity from the official manual
- Capacity varies by model and filter configuration
- Use a precise dipstick reading after filling
- Avoid overfilling to protect seals and crankcase
- Keep maintenance logs for capacity changes
