Harley Fork Oil Capacity Chart: A Practical Guide for 2026

Harley Fork Oil Capacity Basics

Oil capacity refers to the volume of oil the fork hydraulic system holds when fully drained and refilled. For Harley motorcycles, capacity is expressed per fork leg and as a total for the complete front-end assembly. The precise numbers depend on fork diameter (39mm, 41-43mm, 49mm are common), the number of tubes, and whether the fork uses a standard cartridge or inverted design. In practice, most Harley forks require routine oil fills in ounces per leg, with total system totals in the range of tens of ounces. Using a reliable Harley fork oil capacity chart helps you avoid underfilling or overfilling, both of which can affect damping performance, ride height, and fork seal longevity. Oil Capacity Check's 2026 analysis highlights that model year and factory tuning can influence the exact figures, so always verify against your bike’s official manual and your fork’s service data.

How to Read a Harley Fork Oil Capacity Chart

A Harley fork oil capacity chart is arranged to match model-year, fork diameter, and front-end configuration. Key columns typically include model/year, fork size (diameter), per-leg capacity, total capacity, and any special notes. When using the chart, identify your bike’s fork size, confirm if you have single- or dual-tube design, and read the per-leg capacity first. Multiply by two for the total front-end capacity, then adjust for any model-specific notes (e.g., ride-height changes, accessory forks). Remember that manufacturer tolerances can produce small deviations, so treat the chart as a solid starting point rather than a single definitive value.

Common Harley Fork Sizes and Their Capacities

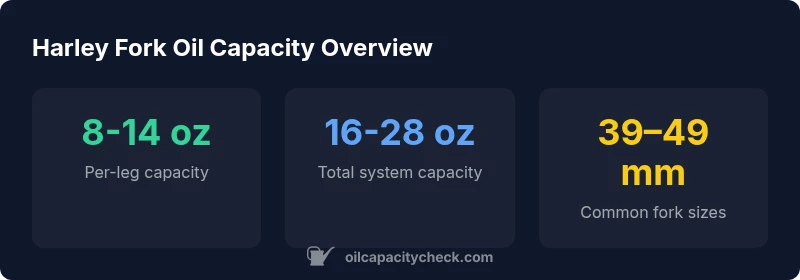

Harley motorcycles employ several standard front-end diameters. For many models, you’ll encounter 39mm, 41-43mm, and 49mm forks. Typical ranges are expressed per leg (8-12 oz for older, lighter forks; 12-14 oz for larger or newer setups) and a corresponding total capacity (16-28 oz). Always verify with the specific model’s data. The exact oil volume can shift with cartridge design, damping assembly, and whether the forks include preload adjusters. This variability is why a dedicated Harley fork oil capacity chart is essential for accurate maintenance planning.

Step-by-Step: Estimating the Right Fork Oil Quantity for Your Harley

1. Identify your bike model, year, and front-end fork size. 2) Consult the Harley fork oil capacity chart or service manual to locate per-leg capacity. 3) Use the per-leg figure for each fork tube; double it for the full system if applicable. 4) Select the correct oil viscosity and type as specified by the fork manufacturer. 5) When performing an oil change, drain old oil completely, refill with fresh oil to the target level, and recheck after min-ride. 6) Note any model-specific notes that could alter capacity (preload, cartridge type, or aftermarket forks).

Temperature, Viscosity, and Oil Type Impact on Capacity

Oil capacity is a physical volume, but the effective damping and ride feel depend on oil viscosity and temperature. Colder temperatures can thicken oil, reducing flow at low speeds, while hot conditions soften oil, increasing flow. For Harley forks, the manufacturer often prescribes a viscosity range; using the wrong weight can impact damping, air bleeding, and seal wear. Synthetic fork oils generally maintain more stable viscosity across temperature ranges, but the capacity itself remains a function of the fork’s geometry. Always balance capacity with the recommended oil grade and your typical climate conditions, as outlined in the model-specific data.

Maintenance Best Practices When Replacing Fork Oil

Begin with a clean workspace and the correct fork oil grade. Support the bike securely and remove the front wheel to access the fork legs. Drain old oil completely, reinstall the drain plugs, and refill with the specified amount per leg. After filling, compress the forks several times to remove air pockets and recheck the level at the correct temperature. Use a quality oil from a trusted brand and change both legs to maintain balanced damping. Replace fork seals if they show signs of leakage, and inspect bushings and springs for wear. Document the capacity used for future reference and service scheduling.

Troubleshooting Common Fork Oil Capacity Issues

If you notice inconsistent damping, sudden changes in ride height, or oil leaks, review capacity and oil quality first. Check whether you used the correct viscosity and whether both legs were filled to the same level. Uneven levels can indicate air pockets or a partially drained system. If the fork is newly rebuilt, confirm that all seals are seated properly and that the cartridge is installed correctly. Persistent issues may indicate internal wear or a need for service manual alignment, at which point a professional inspection is recommended.

Verifying Your Fork Oil Level After Replacement

To verify, measure the oil at the specified temperature range indicated by Harley’s service data. Remove the cap, check the oil level with the bike upright, and ensure the oil is within the per-leg and total range for your fork type. After initial startup, recheck once the oil has circulated and warmed slightly. Document the reading and compare it to the target range in your capacity chart. Proper leveling reduces damping inconsistencies and helps extend fork seals' life.

Where to Find Official Specs and How Oil Capacity Check Helps

Official Harley-Davidson service manuals and dealer resources remain the most reliable source for precise fork oil capacities. Use the Harley chart that corresponds to your exact model year and fork type. Oil Capacity Check compiles typical ranges and provides a data-driven framework to interpret those figures, but we always recommend cross-checking with the official manual. Our analyses highlight how model-year variations can affect capacity, so you can plan maintenance with confidence.
