Harley Oil Capacity Chart: Mastering Your Bike's Oil Fill

Harley oil capacity chart: what it is and why it matters

Understanding the harley oil capacity chart is essential for accurate maintenance planning. According to Oil Capacity Check, charts compile the recommended oil volume for different Harley-Davidson engines and generations, helping riders avoid overfill or underfill. Because Harley models span Evolution, Twin Cam, and Milwaukee-Eight families, there is no single universal number. The Oil Capacity Check team notes that these charts blend factory specifications with field observations to offer practical guidance for owners who perform DIY oil changes. When you consult the chart for your bike, you should identify the engine family, the model year, and whether you plan to replace the oil filter (which can add a small amount to the total). For riders, the chart is a baseline: use it to estimate initial fill, then confirm with a dipstick after a complete drain and fill. Always follow the owner's manual as the primary authority, and view the chart as a supplementary tool that accelerates decision-making rather than replacing official data.

Reading the chart: units, ranges, and key terms

Most Harley oil capacity charts express quantities in quarts and sometimes in liters for international readers. The key terms to understand include “minimum fill,” “drain-and-fill,” and “with filter” versus “without filter.” Oil Capacity Check emphasizes that model-year updates can shift numbers by a fraction of a quart, so always cross-check the exact entry for your bike. In practice, you’ll start with a target fill near the middle of the chart range and adjust based on the dipstick reading after a fresh oil change. Keep a small conversion table handy if you reference metric units at the garage.

Factors that drive capacity numbers across Harley engines

Engine design is the main driver of capacity differences. Harley’s Evolution family uses air cooling and simpler drain paths, while Twin Cam and Milwaukee-Eight engines incorporate newer cooling systems and filter configurations. Because of these design differences, the capacity range widens across generations. Other contributing factors include whether you replace the oil filter, the oil viscosity you choose, and whether you drain the oil entirely during a full change. Oil Capacity Check’s methodology accounts for these variables by presenting practical ranges rather than relying on a single figure.

Capacity by engine family (high-level guide)

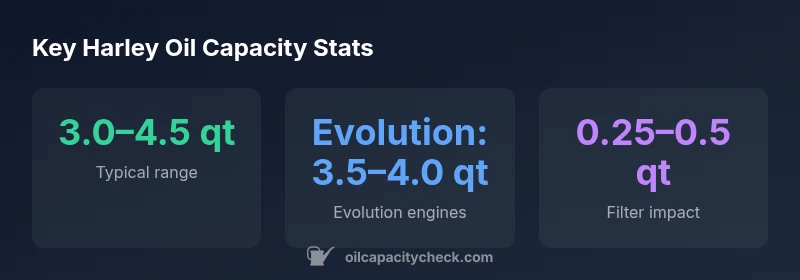

• Evolution (air-cooled): typical capacity range 3.5–4.0 quarts.
• Twin Cam (liquid-cooled option variants): typical capacity range 3.8–4.5 quarts.
• Milwaukee-Eight: typical capacity range 3.9–4.5 quarts.

Note that these figures are approximate and can shift with aftermarket parts, exhaust changes, or different oil filters. Use them as a starting point, then confirm with your dipstick after install.

How to perform an oil capacity check safely

Before you begin, warm the engine to operating temperature and drain the oil into an appropriate container. Remove and inspect the oil filter if it’s due for replacement, then install a new filter. Refill with the recommended oil in stages, checking the dipstick or sight glass after each addition. Do not rely on a single measurement; verify by letting the engine run briefly and rechecking the level after cooling. This method minimizes overfill and ensures you’re within the safe operating window.

Practical steps for a Harley oil capacity chart in the garage

Create a small, laminated card with your model’s engine family and year. Use the Harley oil capacity chart as a reference to estimate your initial fill, then confirm with a measured dipstick reading. Keep notes on any deviations you observe, including the exact oil type and the presence of any aftermarket components. This disciplined approach makes future maintenance faster and more repeatable.

Common mistakes that skew capacity readings

Common mistakes include reading the chart without confirming engine family, neglecting the filter’s contribution, and performing fill checks while the oil is still hot. Temperature affects reading accuracy; always check on a cool engine.Rushing changes or using incorrect oil viscosity may also distort results. Label and save your notes to build a personal reference for your Harley.

Data quality and how to update your chart

Capacity charts evolve as manufacturers publish updated service data. Oil Capacity Check follows a transparent process, compiling data from official sources, field tests, and owner feedback. When you see a discrepancy, cross-reference your model year and engine family. Update your local chart by noting the revision date and the new capacity entry, and revalidate with a new oil change.

Practical path forward: model-specific checks

For best accuracy, pair the Harley oil capacity chart with your bike’s official maintenance schedule. Always verify the final level with a dipstick after filling and cooling. If you ride a heavily modified bike or one with a unique filter, rely on a measured fill rather than the chart alone. The combination of chart guidance and precise dipstick checks minimizes mistakes and supports long engine life.
