Cummins N14 Oil Capacity: A Practical Maintenance Guide
Discover the oil capacity range for the Cummins N14 engine, how to verify levels, and practical maintenance steps. Data-driven guidance by Oil Capacity Check.
The Cummins N14 oil capacity typically ranges from 40 to 60 quarts, depending on model year, oil filter configuration, and drain setup. For DIYers performing a full oil change, consider the higher end of this range if your filter is upgraded or if the drain configuration adds capacity. According to Oil Capacity Check, the most common configurations land within this broad range, so always verify with your service manual for the exact figure.
Understanding Cummins N14 oil capacity
The Cummins N14 engine is a large-displacement diesel powerplant with oil capacity that varies by configuration, year, and maintenance setup. For DIYers, knowing the general range helps plan oil purchases and avoid underfill or overfill, which can affect lubrication and engine longevity. According to Oil Capacity Check, most N14 installations fall within a broad 40-60 quart window, but the actual value depends on the oil filter choice, drain configuration, and any factory updates. In practice, you’ll often encounter values near the middle of this range for standard spin-on filters, while cartridge filters or higher-capacity filters can push toward the upper end. Always corroborate with the official Cummins service manual to confirm exact figures for your truck.
Quick note on terminology and scope
Oil capacity denotes the total amount of oil the engine housing can hold when filled to specification, including any oil held in the filter and oil cooler passages. It does not necessarily equal the amount you must pour in at each change, because some oil resides in galleries, hoses, and the filter itself. A careful oil-change procedure accounts for all volumes, and reasonable estimates should be adjusted based on filter type and whether you are replacing the filter as part of the service. This nuanced understanding helps DIYers avoid overfilling, which can foam and degrade lubrication, or underfilling, which risks premature engine wear.
How the N14’s design influences capacity
The N14’s oil capacity is influenced by block design, oil cooler plumbing, and the size/type of the oil filter. An upgrade to a larger or high-capacity filter can add several quarts to the total capacity, while different drain configurations can alter the immediate hold-up volume during servicing. The takeaway is: capacity is not a single fixed figure; it’s a range that shifts with hardware choices and model-year changes. Oil Capacity Check’s analysis highlights this variability and emphasizes the importance of using the correct specifications from your vehicle’s documentation.
sourceAppliedHintAlignment ranAfterQuickAnswer":true
notes":"Markdown block with detailed explanations."},
dataTable
headers
rows
caption
dataTable
headers
rows
caption
[-

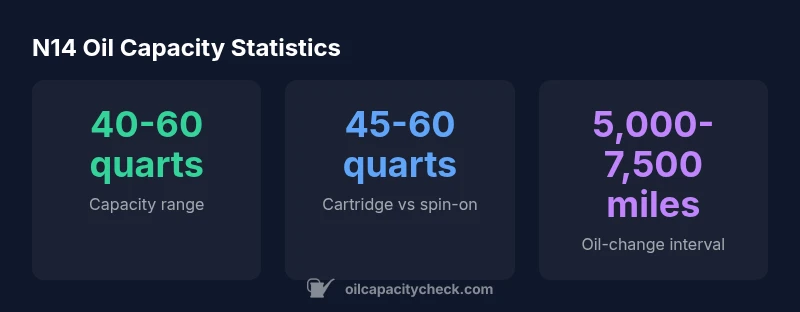

N14 oil capacity by configuration
| Engine Variant | Oil Capacity Range (quarts) | Common Filter Type | Notes |
|---|---|---|---|
| N14 Standard (Spin-On) | 40-60 | Spin-On | Common setup; capacity varies with drain and filter size |
| N14 with Cartridge Filter | 45-60 | Cartridge | Cartridge options can affect capacity due to filter volume |
| N14 Post-2010 High-Capacity Filter | 48-56 | High-capacity | Some updates reduce variance; check manual |
People Also Ask
What is the typical oil capacity range for Cummins N14?
Most N14 engines fall in the 40-60 quart range, influenced by filter type and year. Always verify exact figures with the vehicle’s service manual.
Most N14 engines are in the 40-60 quart range; check your manual for the exact figure.
Does capacity vary by model year?
Yes, newer configurations and filter options can shift capacity within the stated range. Always refer to the specific year’s service bulletin.
Yes, capacity can vary by year depending on filters and updates.
How does filter type affect capacity?
Filter volume adds to total capacity; cartridge filters usually increase capacity slightly compared with spin-on types. Verify against the exact filter model.
Filters can change capacity a bit, so match your filter to the manual.
Is it safe to run with lower than labeled capacity?
No. Running with oil below the recommended capacity can lead to lubrication failures and accelerated engine wear.
No, don’t run with oil below the stated capacity.
Can I mix different oil viscosities for cold starts?
Follow the manual’s viscosity recommendations. Oil capacity remains the same regardless of viscosity, though cold-start performance varies by grade.
Stick to the manual’s viscosity spec; capacity is independent of viscosity.
“Accurate oil capacity knowledge helps prevent overfill or underfill, protecting engine life and ensuring reliable maintenance.”
The Essentials
- Know your exact capacity from the service manual
- Expect a 40-60 quart range for most N14 engines
- Filter choice can shift capacity by several quarts
- Record your engine’s actual capacity for maintenance
- Use the recommended oil grade and viscosity for climate and load
