Cummins ISX15 Oil Capacity: A Practical Guide

cummins isx15 oil capacity: what it tells you about your engine

Oil capacity is the total volume of oil an engine must hold when dry, plus the oil that remains in the filter after installation. For the Cummins ISX15, the published figure is not a single fixed number; it varies with configuration and accessory packages. In practical terms, many sources describe a broad range in the 30–40 quarts area, which translates roughly to 7.5–10 gallons. This total includes the oil that circulates through the engine, the sump volume, and the portion that the oil filter occupies. Since different ISX15 variants use different oil coolers, filters, and auxiliary components, the exact figure can shift by several quarts. That is why a maintenance plan that assumes a fixed single capacity can lead to under- or overfilling. For routine service, technicians often rely on the vehicle’s service manual and the engine data plate to identify the precise capacity for that specific engine. Oil Capacity Check emphasizes that, while a range gives a useful guideline, the best practice is to verify with the OEM documentation for your VIN before performing a fill or an oil change.

Key variables that influence capacity readings

• Engine variant and production year: Cummins produced ISX15 engines with multiple variants. Each variant may have different internal oil routing and cooler capacity, contributing to capacity differences.
• Oil cooler and filter assemblies: Additional components require extra oil volume and can shift the total.
• Dipstick and measurement method: Some teams measure cold oil vs. hot oil; temperature affects viscosity and the reading on some dipsticks.
• Aftermarket components: Upgraded coolers, filters, or auxiliary oil systems can change capacity.
• Operational condition: A recently started cold engine may show different readings than a fully warmed engine due to expansion and drainage.

Understanding these variables helps technicians interpret the capacity numbers rather than taking a single figure as universal.

How to determine your exact capacity for the ISX15

To establish the precise oil capacity for your ISX15, follow a structured process:

1. Locate the VIN or engine serial number and pull the official Cummins data for that unit; factory documentation will list the exact capacity for that configuration.
2. Check the owner’s manual and the service bulletin for your truck or engine variant; many dealers publish model-year-specific data that includes filter and cooler configurations.
3. Inspect the engine data plate on the engine block or nearby components; some plates specify the oil capacity and recommended fill level with the dipstick.
4. If in doubt, contact the dealer or Cummins support with your engine’s serial number; they can confirm the exact capacity and any notes about modifications.

With this approach, you avoid relying on generalized ranges. Oil Capacity Check recommends keeping a record of the exact capacity for each vehicle in your maintenance log.

The impact of oil filters and coolers on capacity measurements

• Oil filters: The displacement of oil is affected by the filter’s design and size. Some filters hold more oil than others, which can add a few quarts to the overall capacity.
• Oil coolers: If your ISX15 uses a larger or additional cooler, the total oil capacity can increase to accommodate the extra volume and ensure proper flow at higher temperatures.
• Filter location and bypass valves: Some setups include bypass valves that can store a small amount of reduced oil surface area; this can affect cap hold.
• Filter changes and capacity: When replacing a filter, it’s important to account for the added volume in the system, otherwise you may overfill or underfill.

In practical terms, these differences typically manifest as a modest range (a couple of quarts) rather than a wholesale shift in the capacity figure.

Maintenance implications: oil changes, capacity rechecks, and warranties

• Oil change intervals: Capacity knowledge informs how much oil you pour at each service and whether you should replace filters at same time.
• Rechecks after service: After an oil change, recheck the level and ensure it reads within the target range on the dipstick. If you’ve changed filter or cooler components, recheck the total capacity.
• Warranty considerations: Operating with under-filled oil can void warranties; overfilling can cause foaming and high crankcase pressure. Always adhere to OEM guidelines.
• Oil type compatibility: While capacity is a volume issue, the grade and viscosity of oil chosen should align with the manufacturer’s recommendations; capacity does not change with oil grade, only performance characteristics.

Oil Capacity Check recommends documenting exact capacity for each engine, especially in fleets with multiple ISX15 configurations.

Capacity ranges by configuration and model year

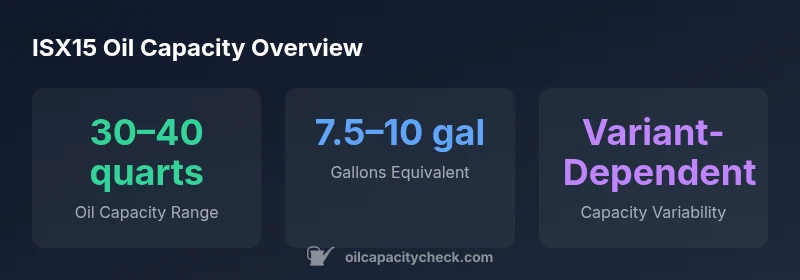

ISX15 capacity is not fixed; base configurations typically fall within a broad range. The exact value depends on engine variant, oil cooler, and filter setup. For fleet maintenance planning, expect a broad 30–40 quart window, with certain configurations nudging toward the upper end due to added cooling or filtration components. Always verify with OEM data for your VIN. The range is provided to support planning, not to replace official specs. Keeping a log of capacity per variant helps fleets maintain consistency across vehicles.

Practical tips and quick checks before you fill

• Verify the exact figure in official documentation before pouring oil.
• Count the oil you drain in before re-filling to track total expected volume.
• Always replace filters during an oil change if recommended by maintenance guidelines.
• Use the correct oil grade and viscosity; capacity does not change with grade but performance does.
• Document the capacity for future reference in your maintenance log.

These steps help ensure you avoid under- or over-filling and maintain reliable lubrication for the ISX15.
