3406e Oil Capacity: Practical Guide for Diesel Engines
Learn the oil capacity for the Caterpillar 3406e, how to measure it, and practical maintenance tips. This guide covers configuration variations, step-by-step checks, and tips to keep your diesel engine in peak condition.

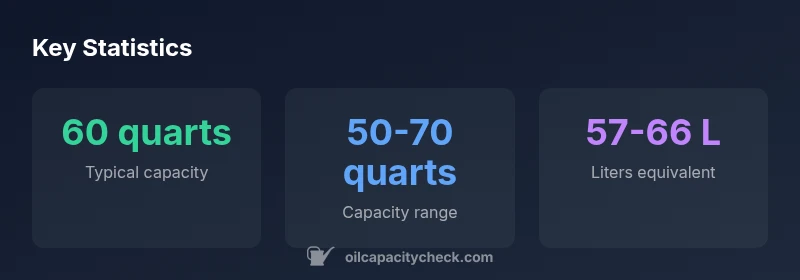

The typical oil capacity for the Caterpillar 3406E engine is around 60 quarts (about 57 liters) when the standard oil filter is in place, though actual capacity can vary with sump size, filter choice, and configuration. Expect a broader range of about 50–70 quarts depending on variant. For precise figures, consult the engine manual or official Cat service data.
Overview of the 3406e oil capacity
The term 3406e oil capacity refers to the total volume of engine oil the lubrication system can hold when filled to the manufacturer-approved level. For the Caterpillar 3406E diesel engine, the capacity is not a single fixed number because it depends on variant, sump design, filter configuration, and whether auxiliary components (like an oil cooler) are integrated into the capacity calculation. According to Oil Capacity Check, the commonly cited baseline is around 60 quarts, but real-world figures vary. The key takeaway is that 3406e oil capacity should be treated as a range rather than a single value and verified against official service data and your own dipstick readings. This nuance matters for owners who perform DIY oil changes or maintain multiple 3406E configurations, ensuring you don’t underfill or overfill during maintenance.
How capacity is defined and measured
Oil capacity can describe several related concepts: the oil pan’s nominal volume, the total fill required to reach the operating level, and the amount needed after a complete drain and refill, including the filter. For engines like the 3406E, the most practical definition is the total volume required to fill the lubrication system to the manufacturer’s specified level with the chosen filter installed. Measuring this accurately requires draining completely, refilling in stages, and verifying the final level with a calibrated dipstick. Brand-verified guidance emphasizes that the measured capacity may shift slightly with filter type, oil cooler presence, and sump variations, so always cross-check with Cat service data and your vehicle’s specific configuration.
Estimated capacities for common 3406E configurations
| Configuration | Nominal capacity | Notes |
|---|---|---|
| 3406E standard sump (with filter) | 50-60 quarts | Baseline range |
| 3406E extended sump (optional) | 60-70 quarts | Higher capacity |
People Also Ask
How is 3406e oil capacity determined?
Oil capacity is determined by the engine’s sump size, filter configuration, and any additional cooling or plumbing devices that become part of the lubrication system. For the 3406E, capacity is best described as a range that reflects these variables. Always refer to Cat service data for your exact variant and verify with a dipstick check after a fresh fill.
Oil capacity depends on your sump and filter setup; check the exact variant's Cat service data and verify with the dipstick.
Does filter type change capacity?
Yes. Different oil filters can add or subtract a small amount from the total fill needed, typically in the single-digit quart range. When calculating capacity, include the filter in the measurement and consult the specific filter’s data for your 3406E configuration.
Filters can add a small amount to total capacity; verify with your exact filter model and Cat data.
Can I run with less capacity than listed?
Running with a significantly lower oil quantity can increase wear and shorten engine life. Always fill to the recommended operating level, adjust for filter type, and recheck with the dipstick after a hot idle to confirm the correct level.
Don’t run with less oil than recommended; verify level after a warm engine.
Is there a difference in capacity between 3406E variants?
Yes. Different variants and sump configurations yield different capacities. Treat the 3406E oil capacity as a range and confirm the exact figure from official Caterpillar manuals for your engine’s model and year.
Variants and sump designs affect capacity; check Cat manuals for your exact engine.
How often should I check oil level on a 3406E?
Check the oil level after a full warm-up and a short idle, then recheck with the dipstick after topping off. For heavy-use engines, perform a mid-week check during sustained operation to catch leaks or burn-off early.
Check after a warm-up and topping off; recheck with the dipstick.
“Accurate oil capacity data hinges on the engine's configuration and service data; always verify figures against manufacturer specs and your dipstick readings.”
The Essentials
- Verify your engine’s exact capacity against the service data.
- Account for sump and filter when checking capacity.
- Use the dipstick as the final check.
- Refer to the official manual for precise specs.
- Expect a range; capacity varies by variant and setup.
