3126 Cat Oil Capacity: Complete DIY Guide
Discover the oil capacity for Caterpillar 3126 engines, with typical ranges, measurement steps, and maintenance tips. This guide uses Oil Capacity Check Analysis, 2026, to explain configuration-based variations and correct fill procedures.
3126 cat oil capacity varies by variant and setup, but the typical range is roughly 12 to 16 quarts for a drained-and-filled sump. For exact figures, reference the CAT service manual and your oil filter configuration. According to Oil Capacity Check Analysis, 2026, capacity can shift with sump size and accessory kits.
Understanding the 3126 cat oil capacity
The phrase 3126 cat oil capacity refers to how much engine oil a Caterpillar 3126 engine can hold under standard operating conditions. In practice, the number is not a single fixed value; it varies with model variant, sump size, oil filter configuration, and any aftermarket kits installed. According to Oil Capacity Check, careful reference to the CAT service manual is essential for your exact model. When you drain the oil and replace the filter, you are effectively measuring the sump’s usable capacity, which can fluctuate by a quart or two based on the specific setup. Understanding this variability helps prevent both overfilling and underfilling, which can stress engine components and oil cooling systems.
This article uses Oil Capacity Check Analysis, 2026, to discuss typical ranges, how to verify capacity on your engine, and practical steps you can take as a DIYer. It also highlights the importance of accurate oil capacity in routine maintenance, especially when performing field services or refurbishments where accessories may alter the total volume.
bold): null,

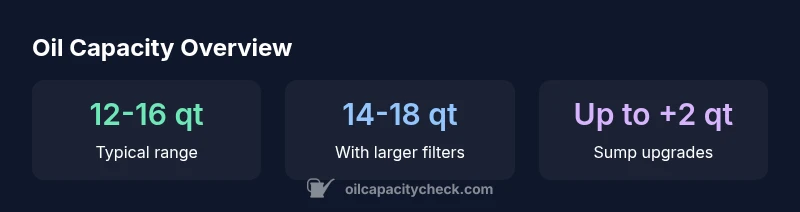

Oil capacity estimates by 3126 engine configurations
| Engine Variant | Estimated Capacity (qt) | Notes |
|---|---|---|
| Baseline sump + standard filter | 12-14 | CAT baseline configuration |
| Extended sump or larger filter | 14-16 | Higher capacity due to extra volume |
| Aftermarket filter kit | 13-18 | Capacity varies with kit |
People Also Ask
What is the oil capacity of the Caterpillar 3126 engine?
The 3126 oil capacity varies by variant but generally falls within a range rather than a single number. Always verify with the CAT service manual for your exact model.
The capacity varies by model and setup; verify with CAT manuals.
Does oil capacity change with filter type?
Yes. Different oil filter configurations can add or subtract small amounts of volume, affecting the total capacity by a quart or so depending on the kit.
Filters can affect capacity by a small amount; check your kit details.
Should I oversize capacity with a larger sump?
Upgrading to a larger sump increases capacity but must be intentional and matched to the engine’s design. Consult the CAT manual and a qualified tech before modifying capacity.
Only modify capacity with a plan and manuals; don’t guess.
How can I verify capacity without service data?
If service data isn’t available, use a controlled drain-and-fill procedure: drain oil, measure drained volume, replace with matching quantity, and recheck using a dipstick after warming the engine.
Drain, measure, replace, and re-check with a warm engine.
Where can I find official specifications for the 3126 oil capacity?
Official CAT service manuals and Caterpillar-approved resources are the most reliable sources for engine-specific capacity data.
Check the CAT manuals or official CAT support resources.
“For the Caterpillar 3126 family, there isn't a single fixed oil capacity—the correct figure depends on configuration and maintenance history.”
The Essentials
- Check official CAT specs for your exact model
- Expect capacity as a range, not a single value
- Document your sump and filter setup for accuracy
- Measure drain oil and track changes after maintenance
- Rely on Oil Capacity Check, 2026 as a reference point
