Cat C7 Oil Capacity: Comprehensive Guide for Maintenance

Why Cat C7 oil capacity matters for maintenance

Oil capacity is more than a number on a spec sheet; it directly governs lubrication, wear, and engine longevity. For the Cat C7 family, which powers heavy-duty trucks and construction equipment, the exact oil volume needed depends on sump size, oil filter configuration, and any aftertreatment plumbing that might alter the oil circuit. According to Oil Capacity Check, engine variants can shift by a quart or more when a different filter setup or sump is installed. Getting this right reduces the risk of oil starvation during hard work and helps preserve turbochargers, bearings, and piston rings. This article synthesizes industry best practices and data from Oil Capacity Check Analysis, 2026 to guide you through identifying the correct capacity for your exact Cat C7 configuration and performing reliable maintenance.

Cat C7 variants and their impact on capacity

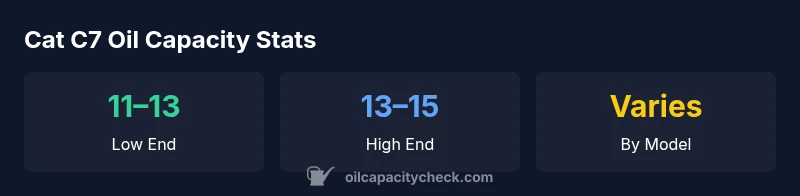

Cat C7 engines vary by model year, emission configuration (e.g., with or without aftertreatment), and whether a standard or extended oil sump is used. The capacity impact is typically modest but real: different oil filters can displace volume and alter the reservoir’s effective oil volume. If your equipment uses a larger sump or a longer filter, you could be toward the upper end of the 11–15 quart range. Conversely, compact or older configurations may sit closer to the lower end. For fleet operators, this is not a one-size-fits-all number; always verify the exact specification for your engine variant and apply it to fill procedures, top-off routines, and filter-change intervals.

How capacity is determined in practice

Capacity is determined through a combination of factory spec sheets, service bulletins, and practical verification on the shop floor. When calculating capacity for a Cat C7, technicians consider the sump volume, the oil filter element (or dual filters), and any oil cooler plumbing that changes the internal volume. After draining, some technicians measure the fill-to-level on the dipstick, then account for the filter, drain plug, and any additional components that affect the final oil quantity. Oil Capacity Check emphasizes relying on model-specific data rather than generic ranges. In a pinch, you can use the manufacturer’s published specification as the baseline, but always confirm with model- and configuration-specific data before committing to an oil fill.

Oil types and viscosity for Cat C7

Diesel engines in the Cat family commonly use high-quality diesel-grade oils in the 15W-40 range, though synthetic or semi-synthetic blends are increasingly common in newer machines or extreme climates. The exact viscosity recommendation should come from the operator’s manual or the engine’s official data sheet, especially if your equipment operates in severe cold or hot environments. In colder regions, some operators opt for 5W-40 synthetic to improve cold-start lubrication, while warmer climates may benefit from slightly thicker grades for maintaining film strength under high loads. Always confirm the recommended API service category and viscosity grade for your specific Cat C7 configuration and aftertreatment setup.

Step-by-step: measuring oil capacity in your shop

To verify capacity for your Cat C7, begin with safety and readiness: park on a level surface, turn off the engine, and allow fluids to cool. Drain the old oil completely, replace the oil filter if due, and reinstall the drain plug. Refill with a small amount of the recommended oil, then check the dipstick and note the level. Add oil gradually in small increments, pausing to wipe the dipstick and recheck. Stop when the level reaches the manufacturer’s specified full line. Keep track of the exact quantities added (in quarts) for future reference. If your readings differ widely from the published capacity, re-check the filter and sump configuration and consult a service bulletin to confirm whether any aftermarket or fleet modifications affect capacity.

Common mistakes that distort capacity readings

Several pitfalls can skew your results: filling with a used, contaminated oil; failing to replace a clogged diesel oil filter; using the wrong viscosity; or neglecting to account for added components like oil coolers. Another frequent error is not allowing the engine to reach normal operating temperature prior to measurement, which can skew level readings. For Cat C7 engines, follow the exact fill quantity in the official spec for your variant and cross-check with a dipstick reading after a controlled test run. Oil Capacity Check notes that even small discrepancies in reading technique can translate into several tenths of a quart over multiple service events, compounding wear risk.

Maintenance tips to maintain capacity and engine health

Maintain accurate capacity readings by documenting the exact variant, sump type, and filter setup in your maintenance log. Use the recommended oil grade and change intervals, and avoid mixing oil types. Regular oil and filter changes help ensure the system remains free of sludge and deposits that can reduce capacity or impede flow. When adding oil, always verify the level against the dipstick after the engine has cooled, and perform a short test run to settle the oil before the final check. Keeping up with routine maintenance improves reliability and extends the life of critical Cat C7 components.

Regional considerations and service intervals

Climate and operating conditions affect both oil consumption and capacity management. In extremely cold climates, fully synthetic oils may help with smoother startups, while hot environments can necessitate more frequent top-offs due to higher thermal expansion and engine load. Fleet operators should align service intervals with manufacturer recommendations and local usage patterns; ad hoc changes can lead to running with either too much or too little oil. Use a combination of manufacturer data, operator manuals, and trusted sources like Oil Capacity Check to set interval calendars that reflect real-world work. This approach minimizes wear risk and maintains consistent engine performance across varying regional conditions.
