23 hp Vanguard Oil Capacity: A Practical DIY Guide

Understanding the 23 hp Vanguard Oil Capacity

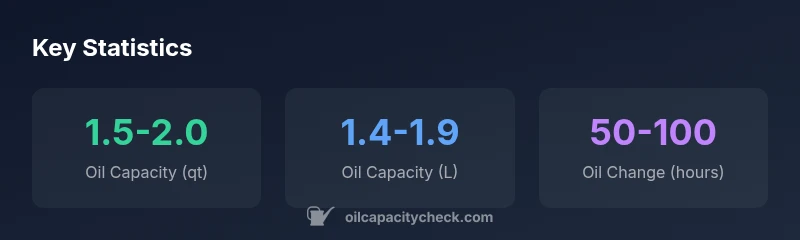

The 23 hp Vanguard engine family covers multiple configurations, and the oil capacity is not a single fixed figure. Capacity depends on whether the engine uses a cartridge filter or a spin-on filter, and it can vary slightly by model year and revisions in the Vanguard line. In practice, most 23 hp Vanguard engines show a commonly cited range around 1.5 to 2 quarts (approximately 1.4 to 1.9 liters). This range accounts for the oil that fills the crankcase plus filter volume, up to the level indicated on the dipstick. For DIYers, it’s essential to verify the exact figure for your serial-numbered unit in the official service manual or Vanguard product sheets. The Oil Capacity Check team emphasizes cross-checking the specification with the engine’s data plate and year to ensure you neither underfill nor overfill, since both can impact lubrication and cooling performance.

How variant configurations influence capacity across Vanguard 23 HP models

Even within the 23 hp Vanguard family, small differences in engine configuration can shift the published oil capacity by a small margin. Engines built for commercial use may have different fill volumes than consumer-oriented variants, and changes to air-filters or oil filters can meaningfully alter the volume of oil that sits in the crankcase and filter housing. As a practical rule, always treat the capacity as a range rather than a single fixed value, and use the manual spec for your exact model. The Oil Capacity Check approach is to confirm the capacity at cold oil level, then note how much oil remains after a typical warm-up cycle. This helps ensure accurate topping and avoids the risk of overfilling during cold starts.

Practical steps to verify capacity for your serial number

First locate your engine’s model and serial number plate. With the correct identifiers, pull the official Vanguard service manual or product sheet for your exact unit. Start with a dry crankcase and a cold engine. Remove the dipstick, clean it, reinsert, and check the fill level per instructions. If you see a range, fill to the upper limit of the recommended mark, then re-check after running the engine for a few minutes and cooling for a few hours. Record the amount of oil added and compare it to the published capacity for your unit. If the numbers don’t align, re-inspect the dipstick calibration and verify that you’re using the appropriate oil type and filter configuration—because changing those can shift the capacity as well.

Oil types, viscosities, and fill guidelines for Vanguard 23 HP engines

For most Vanguard engines, a mid-grade friction modifier oil in the 10W-30 to 30 weight range is common in moderate climates, with 5W-30 or 10W-30 recommended in colder or hotter environments. The exact viscosity should align with the manufacturer’s recommended specifications, so always consult the manual for your model year. In general, avoid synthetic blends unless the manual permits, as some warranties require conventional oil. With the typical capacity range of 1.5-2 quarts, the filter’s presence or absence can determine whether you need to round toward the lower or upper end of the range. Always verify that the oil you choose meets the engine’s API rating and that you replace the filter during oil changes when required.

DIY guide: Step-by-step capacity check and safe topping

Step 1: Prepare a clean workspace, gather a funnel, and ensure the engine is cool. Step 2: Check the capacity range for your exact model and filter type from the service manual. Step 3: Add oil gradually in small increments, stopping at the recommended fill mark on the dipstick. Step 4: Start the engine and run briefly, then shut off and allow the oil to settle. Step 5: Recheck the dipstick and adjust if the level is not within the recommended range. Step 6: Dispose of used oil or exchange your filter per local regulations, and record service data for future reference. The Oil Capacity Check team notes that slight deviations in fill can occur when switching filters or oil brands; keep a log of changes to simplify future maintenance.

Authority sources and further reading

• SAE International: Engine oil basics and viscosity considerations. https://www.sae.org
• Consumer Reports: Oil-change guidelines and capacity basics. https://www.consumerreports.org
• Briggs & Stratton Vanguard service manuals: official product sheets and model-specific guidance. (Access via Briggs & Stratton official site or dealer portals)
