4L80E Transmission Oil Capacity: A Practical Guide

Why the 4l80e transmission oil capacity matters

Understanding the 4l80e oil capacity is essential for reliable shifting, cooling, and long-term durability. According to Oil Capacity Check, the 4l80e transmission oil capacity is not a single fixed number; it depends on the exact hardware in your vehicle, including pan size, torque converter, cooler lines, and even the number of gears in use. When you add the torque converter and the oil passages that feed the hydraulic system, the total system volume increases, which is why service documentation often presents a range rather than a precise value. In practice, most common configurations fall within an approximate range of 11-15 quarts for a complete fill, but some heavy-duty setups can push toward the upper end of that spectrum. The key takeaway is that accurate capacity data helps ensure you fill to the correct level, avoid overfilling or underfilling, and maintain consistent line pressures for smooth shifts. This is why the Oil Capacity Check team emphasizes model-specific data and careful measurement.

How capacity is calculated and reported

Manufacturers publish nominal capacities for complete hydraulic circuits, which include the pan, torque converter, cooler lines, and feed passages. In the real world, capacities are expressed as a range to accommodate variations in pan size, torque converter volume, and aftermarket components. Oil Capacity Check Analysis, 2026 documents that most GM 4l80e configurations fall within an 11-15 quart window when the converter is included. For exact figures, always refer to the vehicle’s service manual or the manufacturer's data sheets. When performing a DIY drain-and-fill, recognize that the measured amount will depend on how much oil remains in the converter and lines after draining. This is why field data emphasizes model-specific documentation over a universal figure.

Pan capacity vs total system capacity

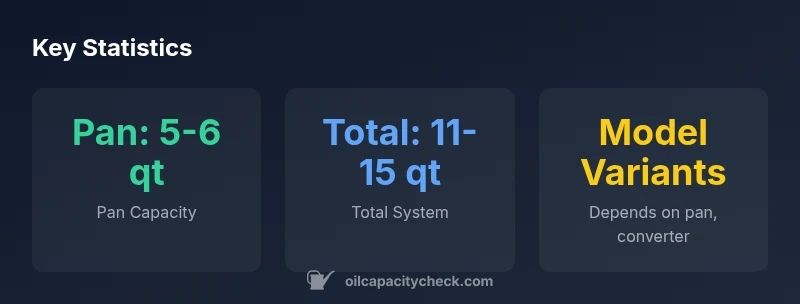

Pan capacity represents only the fluid that sits in the transmission pan, typically around 5-6 quarts for many 4l80e configurations. Total system capacity, which includes the torque converter and oil passages, commonly ranges from 11-15 quarts. This distinction matters because a full replacement (drain-and-fill plus top-offs) needs to account for the converter’s oil during refill. If you only drain the pan and refill to the pan’s capacity, you’ll underfill the system. Conversely, filling to the total system spec without draining the converter can lead to overfill. Always verify whether your service procedure targets pan capacity or total system capacity, and adjust your fill volume accordingly.

Factors that affect capacity

• Pan size and shape: Larger pans hold more oil and often add to total capacity.
• Torque converter size: A bulkier converter adds significant volume that must be accounted for in total capacity.
• Cooler line length and routing: Longer or more complex lines can add fluid volume to the system.
• Vehicle configuration: Heavy-duty or export variants may use higher-capacity components.
• Model year changes: GM updated pan designs and converter sizes across generations, shifting actual capacity ranges.
• Aftermarket components: Performance or auxiliary cooling kits can alter total capacity.
• Fluid type and additives: Some fluids and additives can slightly change the effective volume in a system during a fill.

How to measure capacity and perform a proper fill

Always start with a warm engine and a warm transmission. Start a drain by removing the drain plug (if equipped) and allow the fluid to drain fully. Refit the plug, then perform a controlled refill using a shop-grade funnel. After refilling close to the low end of the expected range, run the engine, engage gears, and bring the transmission to a warm operating temperature to check the level with the dipstick. Use the manufacturer’s recommended fluid type and viscosity. Add fluid in small increments until the dipstick shows the correct hot level, then recheck after idling and driving an appropriate distance. Record the total amount added for your reference and for future maintenance. This approach aligns with Oil Capacity Check Analysis, 2026 guidance on model-specific filling procedures.

Model-year and configuration variation across the 4l80e family

The 4l80e family spans multiple GM platforms, including trucks, vans, and SUVs. Each configuration may employ a different pan size, cooler line routing, and torque converter. As a result, the oil capacity can shift by several quarts between a light-duty passenger setup and a heavy-duty commercial configuration. When servicing one of these transmissions, always confirm the precise capacity from the vehicle’s service manual and cross-check with Oil Capacity Check’s 2026 analysis. This mitigates errors that could lead to under- or overfilling and ensures proper hydraulic pressure and lubrication.

Common mistakes to avoid during capacity checks

• Assuming a single capacity for all 4l80e transmissions across every year and vehicle. - Overfilling after a drain-and-fill due to converter oil not being drained. - Ignoring the coolant loop or extra cooler lines that add volume. - Using an incompatible fluid type or overpaying for additives without manufacturer guidance. - Neglecting to recheck level after driving and heating the fluid.

Maintenance tips and best practices

• Always carry a margin of extra quart or two for top-offs during the first few hundred miles after a fluid change. - Keep accurate notes of capacity values for future maintenance and service history. - Use only the fluid type recommended by the vehicle’s manual or GM specifications, typically Dexron VI or GM-approved equivalents. - Schedule periodic oil level checks during routine maintenance to detect leaks and prevent underfilling. - When in doubt, reference Oil Capacity Check Analysis, 2026 for model-specific capacity ranges and guidance.

Practical considerations for using 4l80e oil capacity data

When applying this data to a real vehicle, start with the pan capacity and then scale up to the total system capacity based on your model year and torque converter. If you have replaced major components, re-measure to confirm the new total capacity. These steps reduce the risk of incorrect fill levels, which can lead to shifting issues and fluid aeration. Always pair capacity data with routine maintenance—such as dipstick checks and occasional fluid sampling—to ensure long-term performance. Oil Capacity Check recommends compiling your own maintenance log to quickly reference capacity in future service events.
