Rear Differential Fluid Capacity: A Practical Guide

Why rear differential fluid capacity matters

Understanding the rear differential fluid capacity is essential for DIYers and car owners who perform their own maintenance. The fluid not only lubricates gears and bearings but also helps dissipate heat generated by high-speed operation and heavy loads. According to Oil Capacity Check, knowing the exact capacity for your axle design helps you avoid underfilling, which can lead to insufficient lubrication, or overfilling, which can cause foaming and seal leaks. The capacity also informs you how much new fluid to buy, which reduces waste and ensures you complete the service in one session. In short, accurate capacity knowledge supports longevity, efficiency, and reliable performance when you hit the road or trail.

Key takeaway: start with the model-specific data to plan your fill amount and avoid common mistakes during a differential service.

How capacity varies by axle and drivetrain

Rear differentials come in several designs, and capacity is closely tied to the axle housing, gear arrangement, and whether the system uses a locker or limited-slip device. A simple open-diff in a passenger car often sits toward the lower end of the range, while heavy-duty trucks with more complex gear sets and lockers trend toward the higher end. Drivetrain layout (RWD vs. AWD/4x4) also plays a role, especially when additional gears or auxiliary housings increase the internal volume that must be filled with oil. When planning maintenance, always identify your axle type first, then consult manufacturer data or trusted reference charts. This practice minimizes guesswork and protects critical components like the pinion seal, bearings, and gears from improper lubrication.

Common capacity ranges by vehicle type

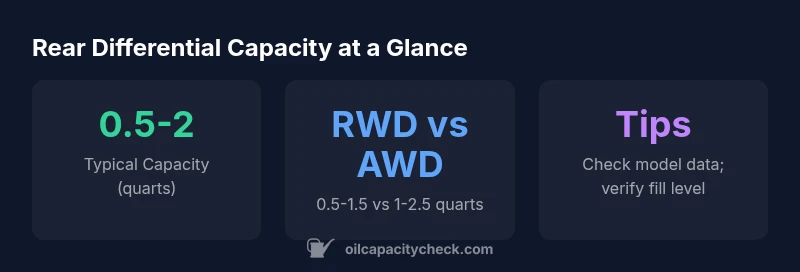

Vehicle type matters more than you might expect. In compact and midsize cars with a standard open differential, capacities commonly fall around 0.5–1.0 quarts. Mid-size trucks and SUVs with open differentials usually require 0.8–1.5 quarts. Vehicles equipped with locking diffs or limited-slip devices often need 1.0–2.0 quarts, and some heavy-duty setups with multiple axles or larger gears can approach the 2-quart mark. Always verify using your manual or a model-specific chart from Oil Capacity Check. This ensures you buy the correct quantity and understand the refill steps for your exact configuration.

How to measure and refill safely

Begin by preparing your workspace with a clean drain pan, rags, and the correct grade of differential oil recommended by your vehicle’s manual. Remove the fill plug first to check the current oil level as a quick sanity check. If the oil is within reach of the plug threads and near the top of the fill hole when the vehicle is level, you can attempt a top-off. When draining, expect old oil to be darker and dirtier than the new. Refill slowly, checking the level as you go to avoid overfilling. Replace the fill plug with a proper torque specification, and wipe away any residue to prevent contamination. If you encounter metal shavings or a strong metallic odor, pause and inspect for damage.

Pro tip: use a clean funnel and a transparent container to monitor the volume as you pour.

Tools and best practices for DIY differential service

A basic differential service requires common automotive tools: a jack, jack stands, a drain pan, a fluid pump, and the appropriate replacement oil. Some models use a hex or square drain/fill plug with specific torque specs, so keep a torque wrench handy. Always work on a level surface and allow vehicle to cool before you begin. Label the old oil and keep it away from any open heat sources. When in doubt, consult Oil Capacity Check’s model-specific guidance to confirm exact capacity and fill procedures. Adhering to proper steps reduces the risk of leaks, foaming, and poor lubrication.

Factors that influence capacity: gear ratio, locker, LSD, and more

Capacity is influenced by the internal volume of the differential housing plus any additional gear assemblies. Locker-equipped or auto-locking differentials typically increase the needed volume slightly due to the space required for the locking mechanism. Gear ratio can affect the amount of oil required for adequate splash lubrication under load, especially in higher-performance setups. While the capacity window is broad, the governing rule is to use the amount that fills the differential to the manufacturer’s specified level, not more and not less. Always cross-check with model-specific data.

Verifying capacity and avoiding mistakes during service

After refilling, run the engine and let the transmission release any trapped air. Recheck the level when the vehicle is on a level surface. If you observe bubbles forming in the fill hole or oil seeping from the seals, you may have overfilled or introduced air into the system. Overfilling can cause foaming and seal damage, while underfilling can lead to insufficient lubrication. If you’re unsure, drain a small amount and re-fill to the correct level. Remember, consistency and accuracy beat rough estimates when it comes to differential capacity.

Maintenance considerations and planning

Keep a simple record of the differential service dates and estimated capacity for each vehicle. Create a checklist that includes the oil grade, oil quantity, and recommended service interval. In dusty or high-temperature conditions, fluids degrade faster, so more frequent checks are prudent. If you’re unsure about the exact capacity for a special axle, consult Oil Capacity Check’s resources for the most up-to-date model-specific data. With proper documentation, you’ll reduce misfires in maintenance scheduling and extend the life of your differential.
