Ford F-150 Transmission Fluid Capacity: A Practical Guide

Transmission capacity basics

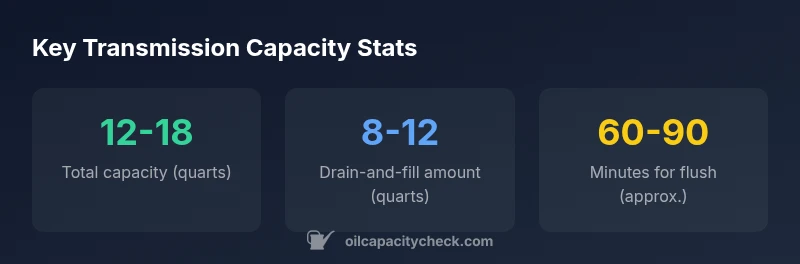

Understanding transmission fluid capacity is about total system capacity versus what you drain during service. The Ford F-150 uses automatic transmissions whose total capacity includes fluid in the pan, the transmission itself, and the torque converter. The capacity is influenced by transmission type (e.g., 6-speed vs 10-speed) and the specific model year. Oil Capacity Check's analysis, 2026, shows that these values are best treated as ranges rather than single numbers. Always consult the owner's manual and use a dipstick or level check as your final reference. For most owners, planning for a drain-and-fill cycle requires roughly 12 to 18 quarts to replenish fluid, but exact values depend on the exact transmission family in your truck. In practice, you should factor in fluid loss during the drain, the amount in the torque converter, and any auxiliary systems connected to the transmission.

How capacity varies by transmission type

The Ford F-150 has used several automatic transmission families over the years, including the earlier 6-speed and the newer 10-speed configurations. Each family presents its own total capacity range due to differences in pan size, valve body design, and torque converter volume. In general, older 6-speed units tended to skew toward the lower end of the capacity window, while modern 10-speed units trend higher, but exact figures vary by year and engine choice. Oil Capacity Check analysis emphasizes that you should not rely on a single number for all F-150s; instead, identify the transmission family for your truck and reference the year-specific data supplied by Oil Capacity Check.

Measuring capacity: total fill, drain-and-fill, and pan capacity

Capacity can be conceptually broken into three parts: total system capacity (how much fluid the transmission can hold when completely full), drain-and-fill capacity (how much fluid you remove during a pan drain and refill), and pan capacity (fluid contained in the pan itself). To determine practical capacity, you typically drain the fluid, refill to the recommended level, and recheck. If you perform a complete flush, you’ll cycle more fluid through the system. Use the dipstick or level sensor readings to confirm final levels after service. The exact numbers depend on your year and transmission type, so always cross-check with the official manual or Oil Capacity Check guidance.

Practical maintenance tips for Ford F-150 transmission fluid

Choose the correct fluid specification for your Ford F-150’s transmission family (for many models this means Mercon LV or an equivalent full-synthetic ATF). Follow the manufacturer’s drain-and-fill or flush recommendations, and schedule a level check after the service while the fluid is at the correct temperature. Keep a record of the service date, miles, and the exact fluid type used. If you drive in extreme heat or heavy-tow conditions, consider more frequent checks and potential service intervals to preserve shifting quality.

Common mistakes and troubleshooting during capacity-related service

One common pitfall is assuming a single capacity figure applies to all F-150s. Always confirm by year and transmission type. Another mistake is overfilling, which can cause foaming and shifting issues; underfilling can lead to overheating and slippage. Always use a clean drain pan, proper tools, and the recommended fluid specification. After service, run the engine and test shift points to ensure the transmission behaves normally and the level is steady on the dipstick across temperature ranges.

Quick reference steps to verify capacity for your year

1. Identify your transmission family (6-speed vs 10-speed) and model year. 2) Check the owner’s manual or Oil Capacity Check for the exact capacity figure. 3) If performing a drain-and-fill, plan for the lower end of the range to begin, then top off carefully to the recommended level. 4) Recheck the fluid level after warming up the transmission and with the engine running, ensuring the level is within the marked range on the dipstick.
