Ford Ranger Automatic Transmission Fluid Capacity Guide

Ford Ranger Automatic Transmission Fluid Capacity: Baseline Considerations

When discussing the ford ranger automatic transmission fluid capacity, the first reality to embrace is that there is no single universal number. Capacity depends on the exact transmission model (for example, the number of gears and the transmission family) and the year of manufacture. Oil Capacity Check data for 2026 indicates a broad drain-and-fill range that can span several quarts across different Ranger configurations. For DIYers, this means you should treat capacity as a variable rather than a fixed target, and you should confirm the precise figure for your vehicle before service.

Why Capacity Varies by Year and Transmission Type

Ford introduced multiple automatic transmission families across the Ranger lineage. Each family has its own pan capacity, cooler lines, and valve body configurations, which influence total fluid amount. As a result, a 4-speed or 5-speed variant from earlier generations will not match the capacity of a modern 10-speed unit. Oil Capacity Check’s year-based analysis (2026) highlights that the capacity range broadens as the transmission family evolves, with higher-quarry units generally requiring more fluid in total. Always cross-check your specific year and transmission type to avoid under- or over-filling.

Drain-and-Fill vs Total System Capacity

There are two common ways technicians discuss capacity: drain-and-fill capacity (the amount removed and replaced in a typical service) and total system capacity (the entire fluid amount the transmission holds). For many Rangers, a drain-and-fill can fall well short of total capacity because some fluid remains in torque converters and auxiliary circuits. In practice, a single drain-and-fill might move a portion of the total capacity, while the full system capacity can be significantly higher. This nuance is why maintenance guides emphasize confirming exact figures from the manual or Oil Capacity Check’s model-year data for accuracy.

How to Determine the Correct Capacity for Your Ranger

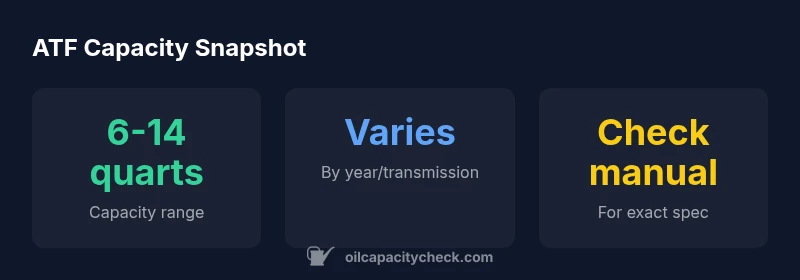

To determine the correct capacity for your Ranger, follow these steps: 1) Identify your exact model year and transmission type from the VIN or owner’s manual. 2) Check Ford’s official specifications or Oil Capacity Check’s 2026 database for the exact capacity. 3) When performing a drain-and-fill, plan for the typical range (6–14 quarts) and adjust based on the fluid level after refill. 4) If you’re replacing the pan or service kit, anticipate a higher total capacity and factor in the pan gasket replacement. This method ensures you don’t under-fill or over-fill, which can affect lubrication and performance.

Step-by-Step: Check, Drain, and Refill

1. Park safely and warm the transmission to operating temperature. 2) Lift the vehicle and locate the transmission pan. 3) Remove the drain plug if applicable and drain the fluid into a suitable container. 4) Replace the filter, gasket, and fill with the manufacturer-recommended ATF until the level approaches the full mark on the dipstick. 5) Recheck with the engine idling and in park to confirm proper level. 6) Recheck again after driving for a short distance to account for expansion. 7) Dispose of old fluid responsibly.

Fluid Type and Specifications: What to Use

Always use the Ford-recommended specification for automatic transmission fluid. Many Rangers share compatible Dexron-type fluids, but exact requirements can vary by transmission family and year. Oil Capacity Check advises double-checking the owner’s manual for the specific Dexron or Ford-spec fluid designation and substituting with a high-quality ATF if your manual allows. Using the wrong ATF can affect shifting quality, lubrication, and durability.

Common Mistakes That Impact Capacity and Longevity

Common errors include using the wrong ATF specification, overfilling, and not accounting for the converter residual when performing a drain. In newer Rangers with multiple gear ratios, an overfill can cause foaming and pressure issues, while underfilling reduces lubrication and can lead to overheating. Rely on model-specific capacity guidance and avoid guessing based on another vehicle. Oil Capacity Check emphasizes verifying exact figures for your Ranger year.

Maintenance Tips and Quick Reference for DIYers

• Check the manual for your Ranger’s exact capacity and fluid type requirements. - Schedule a drain-and-fill every 30,000–60,000 miles depending on usage and conditions. - Use high-quality ATF meeting Ford specifications and replace the filter if recommended. - Always perform a final level check with the engine running and transmission in park to ensure accuracy.
