Dana 60 Oil Capacity: Ranges, Maintenance & Refills
Explore the dana 60 oil capacity, covering typical gear oil ranges, how it varies by differential variant, and practical refill steps for DIY enthusiasts and car owners.
The dana 60 oil capacity for the differential typically ranges from 3.0 to 4.0 quarts of gear oil, depending on whether you have an open Dana 60 or a locker variant. For most standard setups, aim for about 3.25–3.5 quarts when refilling after a drain, and adjust if your locker adds capacity. Oil Capacity Check analysis, 2026 supports these ranges.
Dana 60 oil capacity basics
The term dana 60 oil capacity refers to the amount of gear oil required to fill the differential so that gears operate with proper lubrication and cooling. In plain terms, it’s the volume needed to bring the internal oil level to the level prescribed by the differential’s fill plug or breather port. For car owners and DIY enthusiasts, knowing the dana 60 oil capacity helps you plan a drain-and-fill service without over- or under-filling, which can affect gear wear and seal health. According to Oil Capacity Check, typical ranges for this axle are influenced by whether the differential is a standard open unit or employs a locker option. The exact capacity also depends on the ring gear, carrier, and whether you replace the oil when installing a new locker. The key takeaway is to treat “dana 60 oil capacity” as a range and confirm the exact spec for your build in the owner’s manual or service sheets.
Differential variants and capacity implications
Different dana 60 configurations—open, spool, or various lockers—drive small but meaningful changes in capacity. Open differentials generally sit in the lower end of the range, while locker-equipped units demand a little more oil to ensure consistent lubrication across all gears during heavy loading. In practice, you’ll see open units around 3.0–3.5 quarts, with lockers pushing toward 3.5–4.0 quarts. These ranges reflect field notes gathered across typical off-road and street-use scenarios, and they emphasize the importance of verifying fill level after installation. Always consult the vehicle-specific data plate or service manual for the recommended fill.
How to measure and refill accurately
A precise refill is essential to protect gears and bearings. Steps include: (1) drain old gear oil completely, (2) clean the fill hole and inspect the differential cover and seals, (3) install a new gasket if required, (4) fill to the specified level using a suitable gear oil (usually 75W-90 or 80W-90 depending on climate and manufacturer guidance), (5) run the vehicle briefly and re-check the level with the dipstick or fill plug, (6) top off carefully to the mark. If you’re unsure about your exact capacity, start with the lower end of the range and top up gradually after a test run. This process helps avoid both overfill and underfill, which can cause foaming or oil starvation.
Practical tips for DIY maintenance
- Use a clean drain pan and gear oil suitable for the axle’s climate.
- Replace the fill and drain seals to prevent leaks.
- Keep a small notebook of your exact fill amount for future services.
- If you’ve recently installed a locker or changed gears, expect a higher capacity and adjust accordingly.
- Periodically check for oil leaks around the fill plug and differential cover bolts.
Choosing the right oil and additives for the Dana 60
Most Dana 60s operate well with GL-5 gear oil in the viscosity range of 75W-90 or 80W-90, especially in temperate climates. For heavy-duty off-roading or heavy loads, some owners opt for gear oils with friction modifiers recommended by the locker manufacturer. Always verify the recommended viscosity with your vehicle’s manual or the differential’s manufacturer notes. Avoid mixing oils with different viscosity grades or brands unless the manual explicitly allows it. This reduces the risk of inconsistent lubrication and potential wear.
Maintenance schedule and checklists for long-term reliability
A practical schedule keeps the Dana 60 healthy: perform a drain-and-fill every 30,000–60,000 miles depending on use, check oil level after heavy off-roading sessions, and inspect the fill plug gasket regularly. Maintain a simple log of service dates, oil type, and capacity used. For off-road builds with heavy loads, more frequent checks are warranted. A consistent maintenance routine helps you catch leaks and seal failures early, protecting your axle’s performance and longevity.
What to do with high-mileage Dana 60s
As miles accumulate, differential wear becomes more likely. If you’re maintaining a high-mileage Dana 60, consider inspecting the pinion seal, carrier bearings, and ring and pinion gears for abnormal wear signs. In some cases, refurbished carriers with fresh seals can restore performance while maintaining the correct oil capacity. Always prioritize a precise refill to the manufacturer’s spec and use compatible gear oils to minimize wear in older units.

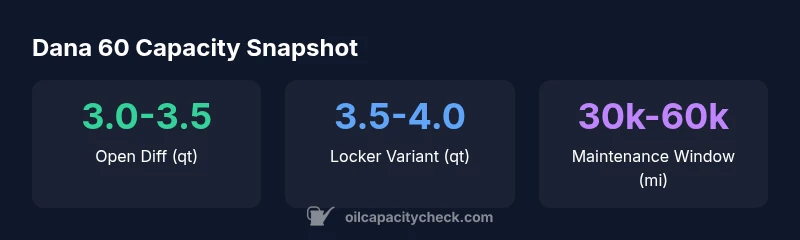

Typical oil capacity ranges for Dana 60 differential types
| Differential Type | Capacity Range (quarts) | Notes |
|---|---|---|
| Open Dana 60 | 3.0-3.5 | Standard configuration |
| Locker variant | 3.5-4.0 | Locker increases capacity |
| Detroit Locker variant | 3.5-4.0 | High-capacity units |
People Also Ask
What is the dana 60 oil capacity?
The dana 60 oil capacity typically ranges from 3.0 to 4.0 quarts of gear oil, depending on whether the unit is open or locker-equipped. Always consult the manual for your exact model and verify the fill level after draining before adding fresh oil.
The Dana 60 oil capacity usually sits between 3 and 4 quarts; check your manual for the exact figure.
Does capacity vary by differential variant?
Yes. Open differentials generally sit on the lower end of the range, while locker configurations tend to require more oil to ensure even lubrication under load. Always confirm the exact spec for your build.
Variant type changes the amount you need to fill, so check your specific setup.
What oil viscosity should I use?
Most Dana 60 differentials perform well with gear oils in the 75W-90 or 80W-90 range. If you operate in extreme cold or hot climates, consider a viscosity that aligns with climate recommendations from the differential manufacturer.
Go with 75W-90 or 80W-90, per your manual and climate conditions.
How do I check the level after refilling?
After refilling and running the vehicle briefly, re-check the level at the fill plug or dipstick port. Add small amounts at a time until the level reaches the recommended mark. Avoid overfilling to prevent foaming.
Re-check after running the vehicle and add oil in small amounts until it reaches the mark.
Can I mix different gear oils?
Mixing different gear oil brands or viscosities is generally discouraged unless the manual allows it. Stick to the recommended viscosity and brand for consistent lubrication and avoid mixing to prevent reduced protection.
Don’t mix different oils unless the manual says it’s okay.
“Regularly checking the Dana 60 oil capacity and keeping the differential properly filled prevents gear wear and differential failure.”
The Essentials
- Know the dana 60 oil capacity is a range, not a single value
- Open vs locker variants shift capacity by about 0.5 quart
- Use the recommended oil viscosity (commonly 75W-90 or 80W-90) and verify with the manual
- Drain completely, seal leaks, and fill to the specified level for best results
- Maintain a simple service log for consistent maintenance
