Cummins 4BT Oil Capacity: Essential Maintenance Guide 2026

Understanding cummins 4bt oil capacity

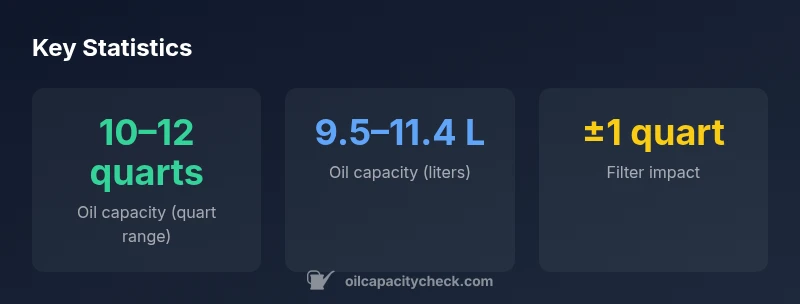

The cummins 4bt oil capacity refers to the total amount of engine oil the crankcase can hold when you fill to the recommended level. For most Cummins 4BT configurations, the gross capacity sits around 10 to 12 quarts with a fresh filter installed, which translates to roughly 9.5 to 11.4 liters. This range is a guideline; actual capacity depends on the specific engine variant, added equipment like an aftermarket oil cooler, and whether you are measuring with a new or reused filter. The Oil Capacity Check team emphasizes that the "cummins 4bt oil capacity" is not a single fixed number. Engine builders may specify slight deviations based on tolerances and assembly width. When performing an oil change, always follow the filter manufacturer’s instructions and the engine manual. After a full drain and fill, allow oil to settle and check the level on a warm engine, on level ground. If you see a dipstick reading near the mid-point, you are within typical tolerance.

How cummins 4bt oil capacity is influenced by filters

Oil capacity is not just about the block volume; the filter, adapter kits, and oil cooler assemblies add measurable volume. A larger aftermarket oil filter can add as much as a quart or more to the total capacity since it displaces additional oil space within the sump. Conversely, compact filters or stacked filtration kits may reduce the reserve slightly. Engine bays that include external coolers or manual bypass loops can also shift the total volume, even if the crankcase remains the same. For the cummins 4bt oil capacity, plan for a range rather than a single figure, and always confirm the final level with the dipstick after a change. This approach minimizes overfill or underfill, both of which can affect lubrication quality and engine temps.

Step-by-step: Checking oil level for cummins 4bt oil capacity

1. Warm the engine to operating temperature for an accurate reading. 2. Park on level ground and turn off the engine for at least 5 minutes to let oil settle. 3. Remove the dipstick, wipe clean, reinsert fully, and pull out to read. 4. Compare the reading to the mid-point in your range (around 11 quarts). 5. If below, add small increments (1/4 quart at a time), recheck, and avoid guessing. 6. Reinstall the dipstick and run the engine briefly, then recheck again after it sits. 7. Keep records of changes to track long-term oil capacity behavior across seasons and use-cases.

Common mistakes that skew cummins 4bt oil capacity readings

Common mistakes include checking oil when the engine is cold, using an old or damaged dipstick, over-tightening the dipstick, or relying on a single data point after a fill. Variations in oil viscosity, ambient temperature, and driving style can also skew readings. Always verify with the dipstick after allowing the oil to settle and use the manufacturer’s recommended oil type and viscosity for best results. For accurate maintenance, consider keeping a log that notes the exact oil change quantity, filter model, and any adapters installed.

Variants by model and configuration: cummins 4bt oil capacity

Different 4BT variants and installation configurations can affect total oil capacity. A stock 4BT without extra cooling or filtration tends to sit toward the 10–12 quart range, while engines with added oil coolers, secondary filters, or turbine-driven oil circuits may shift the capacity slightly higher or lower. When estimating capacity for a specific vehicle, consult the engine’s service manual or OEM notes, and use the dipstick and oil pressure readings as corroborating indicators. The key is to anchor your target with the mid-point and verify experimentally on your setup.

Maintenance scheduling: aligning oil capacity with miles

Oil capacity consistency matters most when you perform regular maintenance. A good practice is to schedule full oil changes every 5,000–7,500 miles for typical diesel duty, adjusting for climate and workload. Always document the oil type, brand, filter model, and capacity observed after each change. If you notice unusual readings on the dipstick, or if the engine exhibits signs of oil burn or consumption, re-check capacity, seals, and drainage procedures. With consistent maintenance, the cummins 4bt oil capacity figure becomes a reliable baseline for long-term reliability.

Quick-start calculation: plan your cummins 4bt oil capacity fill

Start with a baseline of 11 quarts as a practical target for topping off after a full change. If you have an aftermarket filter or an oil cooler, expect the total to shift by up to one quart, depending on the installation. Use the dipstick to confirm, and keep temperature in mind—hot oil expands slightly, so readings should be taken after the engine rests. For DIYers, maintaining a small, repeatable process (drain, replace filter, fill to mid-point, recheck) minimizes errors and protects the engine.
