Briggs & Stratton Oil Capacity Chart PDF: Essential Guide for DIYers

What the Briggs & Stratton oil capacity chart pdf covers

The Briggs & Stratton oil capacity chart pdf is a reference document that maps oil capacities to engine families and displacements. It helps DIYers identify the exact oil capacity for a given model and confirms how much oil to pour when performing an oil change. The chart PDF is most reliable when you know your engine family and serial information, because capacity can vary even among engines that share a name.

This resource is especially useful for small engines used in lawn mowers, generators, snow throwers, and tillers. While numbers can vary by design, the chart provides a structured lookup that reduces guesswork and helps avoid overfill, which can lead to excessive oil pressure or leaks.

Oil Capacity Check Analysis, 2026 notes that manufacturers may update capacities across product lines, so it’s best to use the latest version of the chart pdf from Briggs & Stratton or authorized distributors.

Reading the chart pdf and mapping to your engine

To use the chart effectively, locate your engine family, displacement, and configuration on the left axis, then read horizontally to the oil capacity value. If your model number falls between two entries, use the higher value as a cautious upper bound and verify with dipstick readings after initial fill. Always account for any filters if they add capacity or space out oil return pathways.

When you pull the engine model number from the engine plate, you’ll often see terms like "OHV" or "L-head" that determine the appropriate row. If your engine is Vanguard or a commercial-grade variant, search for that family specifically, as the chart will list those capacities separately.

Engine families and capacity ranges you might see

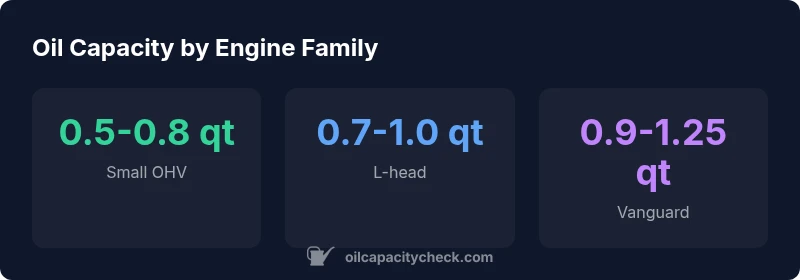

Briggs & Stratton classifies engines into families such as OHV (overhead valve), L-head (flathead), and Vanguard/Professional series. In general, OHV engines tend to be at the lower end of capacity ranges due to compact design, while larger displacement Vanguard units trend toward the higher end. These ranges help you validate the chart values against your own measurements and the dipstick readings.

Keep in mind that the chart pdf may present the capacity in quarts or liters; convert if needed and ensure units match your local practice.

Practical steps to check oil level and fill safely

Start with the engine on a level surface and the oil cold. Remove the dipstick, wipe clean, reinsert, then pull again to read the level. The target fill is at the upper line for a freshly changed engine with a new filter (if applicable), then allow a few minutes for oil to settle and recheck. Use a funnel to avoid spills and never exceed the chart’s maximum capacity.

If you’re topping up, add small amounts and recheck. If you drain oil and replace with fresh, recheck after engine runs to operating temperature and turn off, then recheck again to confirm proper level.

Common mistakes when using oil capacity charts and how to avoid them

Don’t rely on memory of a single model—engine families vary. Mixing up units (quarts vs liters) is a frequent error, as is ignoring filter capacity. Always cross-check the serial number and ensure you’re using the latest Briggs & Stratton chart pdf. Finally, remember that the chart is a guide; always verify oil level with a dipstick after the initial fill.
