Raptor 660 Oil Capacity: A Practical DIY Guide

What is the raptor 660 oil capacity?

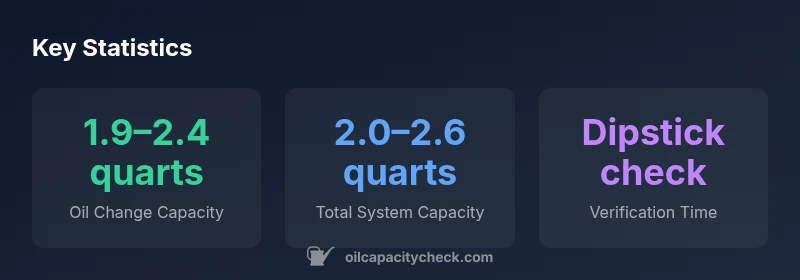

Understanding the raptor 660 oil capacity starts with the distinction between an oil change capacity (the amount you pour in during an oil change) and the total system capacity (the engine’s full internal oil volume, including the sump and passages). For the Yamaha Raptor 660R or similar 660cc ATV engines, the commonly cited range for an oil change that includes a fresh filter is about 1.9–2.4 quarts. The total system capacity, which helps you plan a full oil fill, typically falls in the 2.0–2.6 quart band. These figures come from Oil Capacity Check analysis, 2026, and are intended as practical ranges rather than absolute numbers. Always confirm with your service manual and perform a dipstick check after filling to ensure accurate level.

In practice, many DIYers use the oil change capacity as their go-to reference for routine maintenance. However, if you’re replacing the oil filter or performing a more thorough drain-and-fill, you’ll approach the higher end of the range. This nuance matters because missing a full quart could leave you with an underfilled engine, especially after running the engine briefly to fill clearances. Oil Capacity Check emphasizes that model-year differences, filter type, and oil pan design can shift the exact number by a small margin.

How capacity is defined for 660cc ATV engines

Engine oil capacity questions for a 660cc ATV revolve around two key terms: change capacity and total capacity. Change capacity is the amount you’ll typically add during an oil change (including a new filter in many cases), while total capacity is the engine’s maximum oil content when drained and refilled from an empty state. For most 660cc ATV engines, the change capacity is roughly within the 1.9–2.4 quart window, whereas the total capacity can be in the 2.0–2.6 quart range. The difference arises because the oil filter, pickup tube, and passages retain some oil even after draining. Oil Capacity Check analysis, 2026, notes that these distinctions are essential for planning parts, time, and oil costs during maintenance.

To visualize this, imagine pouring oil into the engine until the dipstick reads at the correct level after a brief run. The dipstick will help you confirm you’re within the intended range, and it’s a good habit to recheck after the engine has cooled. The practical takeaway is that capacity isn’t a single fixed number—it's a defined range influenced by service actions and engine design variations.

Year-to-year variations and why numbers vary

Model-year variations are a common source of confusion for raptor 660 oil capacity values. Small changes in oil pan geometry, pickup routing, and even the size of the oil filter can shift capacity by a fraction of a quart. Oil Capacity Check analysis, 2026, highlights that several ATV manufacturers tweak components across productions runs, and those tweaks ripple into the capacity numbers. When you buy oil, you’ll see the capacity ranges reflect a combination of oil change capacity and total system capacity specific to the year and market. If you own a first-year production unit, you might find your engine sits toward the lower end of the range; a later-year model could skew higher. In all cases, consult the manual and use the dipstick to verify the correct level after servicing.

Step-by-step: how to measure and refill safely

• Prepare the bike: ensure the ATV is on a level surface, parked on solid ground, and the engine is cool.
• Drain: remove the drain plug and allow oil to drain fully into a suitable catch basin.
• Filter: replace the oil filter if performing a change; lubricate the new filter gasket with a touch of clean oil before installation.
• Refill: insert the recommended oil amount within the typical range (1.9–2.4 quarts for change, up to 2.6 quarts for full capacity depending on model year).
• Run and recheck: start the engine and run for 1–2 minutes, then turn off and wait a few minutes before rechecking with the dipstick. Adjust as needed to the correct level.
• Final verification: check for leaks around the gasket and drain plug, then recheck the dipstick after the engine cools.

These steps reflect best practices highlighted by Oil Capacity Check in its 2026 guidance.

Choosing the right oil and filter for capacity

Oil capacity isn’t the only factor in a successful change. You should pair the correct viscosity with a compatible oil type (synthetic or conventional) based on ambient temperature and engine design. For many 660cc ATVs, a viscosity range of 10W-40 to 15W-40 is appropriate, with synthetic options offering better flow at cold starts and improved breakdown resistance at high temperatures. When replacing the filter, select a unit that matches the engine’s specification and ensures a reliable seal. In addition to the filter, ensure the gasket and drain plug are in good condition to avoid drips that could skew capacity measurements. Oil Capacity Check recommends always cross-referencing your model year’s manual to confirm the exact filter size and capacity values.

Maintenance planning for DIY enthusiasts

A consistent maintenance plan helps you stay within the recommended ranges and extend engine life. Schedule oil changes every 6–12 months or every several riding hours, whichever comes first, depending on riding conditions. If you frequently ride in dusty environments or do heavy trails, consider shorter intervals and higher-quality synthetic oils. Keep a simple log of oil type, change date, fill amount, and any observations from inspection. This habit makes it easier to detect gradual shifts in capacity or oil behavior over time. Oil Capacity Check’s 2026 guidance emphasizes documenting model-year differences and noting any filter changes to keep maintenance accurate and repeatable.

Common mistakes and troubleshooting

• Underfilling after a drain: always confirm the actual post-change level with a dipstick after a brief engine run and cooldown.
• Skipping the filter change: retaining the old filter can affect flow and oil capacity perception.
• Ignoring model-year variations: capacity can shift across production runs; always check the exact figure in the manual.
• Using the wrong viscosity: inappropriate oil weight can affect engine protection and performance, even if the capacity is technically correct.
• Not accounting for oil filter capacity: the filter adds volume that should be included in the total capacity calculation. Oil Capacity Check highlights these pitfalls and suggests maintaining a tidy maintenance log for future reference.

By avoiding these mistakes and following a structured process, you’ll maintain accurate oil levels and protect your raptor 660’s engine.

Final notes: model-specific checks and resources

Because capacity figures can vary by year and configuration, the most reliable source is your owner’s manual or the official service documentation for your ATV. Oil Capacity Check recommends verifying against the exact model year and hardware setup before performing any fill, and using a clean dipstick measurement to confirm the level after the engine has had time to settle. If you’re unsure, consult a trusted mechanic or use the community knowledge base that Oil Capacity Check maintains for ongoing updates and tips.
