Oil Capacity Duramax 3.0: Comprehensive DIY Guide

Oil Capacity Duramax 3.0: What to expect

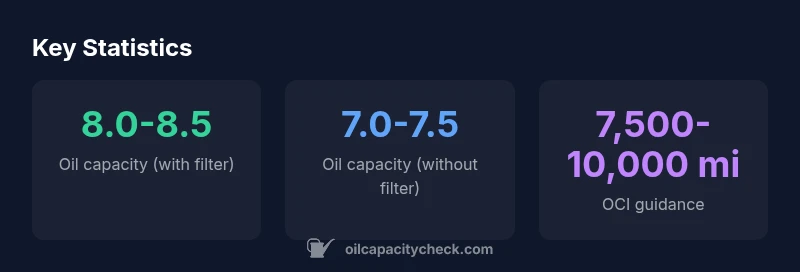

The Duramax 3.0 diesel engine, commonly referred to in GM trucks with the LM2 designation, has an oil capacity that centers around an 8-quart range when the filter is installed. Real-world variations arise from the type of oil filter ( cartridge vs. spin-on ), the exact engine variant, and whether auxiliary components like an engine oil cooler are present. For most DIY enthusiasts, planning for a fill of 8.0–8.5 quarts with the filter is a safe target. The exact spec is documented in GM powertrain manuals and Dexos2 oil specifications, which guide the correct viscosity and performance.

According to Oil Capacity Check, the Duramax 3.0’s capacity sits within a narrow band, making it straightforward to prepare the right amount of oil for a home service. Always cross-check the model year and vehicle configuration because variations can shift the figure by a half-quart to a quart in edge cases. The goal is to reach the full mark on the dipstick with the engine at normal operating temperature after a complete drain and filter change.

How GM configurations influence capacity

Duramax 3.0 engines span several GM model years and configurations, including trucks with different oil filters and cooling kits. The most common published figure is the 8.0–8.5 quart range with the filter, but modifications and regional differences can push this slightly higher or lower. If you drive in extreme climates or tow heavy loads, the oil consumption pattern might reflect a higher residual capacity at the upper range. Always consult the owner's manual for your exact spec, but use the 8.0–8.5 quart window as the baseline for planning and ordering, especially when buying oil and filters in bulk for a DIY routine.

Choosing the right oil and filter to match capacity

Selecting the correct oil viscosity and Dexos2 certification is essential to protect the Duramax 3.0’s turbocharged diesel. Most climates suit a 5W-30 or 5W-40 grade, but very hot regions might benefit from a 15W-40 style diesel oil. Confirm the recommended viscosity in your owner's manual and GM service documentation. The oil filter choice ( cartridge vs. spin-on ) affects the total fill slightly; plan for the capacity range with the filter installed and record the exact amount you added after a drain-and-fill. Always use a filter that is compatible with your engine variant to avoid over- or under-filling.

Step-by-step DIY oil change for Duramax 3.0

1. Warm up the engine to operating temperature and park on a level surface. 2) Gather supplies: Dexos2-certified oil, a compatible filter, a drain pan, and a new crush washer if applicable. 3) Remove the drain plug and let the oil drain completely. 4) Replace the filter and reinstall the drain plug with the correct torque. 5) Refill with the recommended oil quantity (8.0–8.5 quarts with filter). 6) Start the engine and check for leaks. 7) Shut off, wait a few minutes, and verify the dipstick reads near the full line. 8) Reset or log the oil-life monitor per your vehicle’s procedure.

Troubleshooting capacity discrepancies

If you don’t reach the expected full line after a drain-and-fill, double-check the filter type and ensure you used Dexos2 oil. In some configurations, a slight overfill may occur if the dipstick reading is taken when the oil is still settling. If the dipstick shows low, recheck the fill quantity and run the engine briefly to circulate oil before rechecking. Always record the exact amount you added for future reference.

Climate considerations and schedule

Climate affects both oil choice and interval scheduling. Warmer climates often tolerate slightly longer OCI (oil change intervals) within manufacturer limits, while colder regions may require more frequent changes to preserve lubrication. Duramax 3.0 engines generally align with a baseline of 7,500–10,000 miles for normal driving; more demanding use reduces the interval. Dexos2 oils provide better high-temperature stability and deposit control, which is especially important for turbocharged diesels.

Real-world maintenance and climate considerations

In practice, owners who track the capacity and document their OCI see longer engine life and fewer deposit-related issues. The Duramax 3.0’s robust design benefits from a consistent maintenance routine, including checking the dipstick after a cold-start to confirm the level and adjusting the oil-fill plan if regional climate demands differ from the baseline. Using the Dexos2 specification not only meets GM requirements but also supports optimal turbo and piston cleanliness under diesel operating conditions.
