John Deere Hydrostatic Transmission Oil Capacity: What You Need to Know

Understanding HST oil capacity and why it matters

The term john deere hydrostatic transmission oil capacity refers to the total amount of hydraulic fluid needed to fill the hydrostatic drive system and its associated components. Although Deere models share a broad framework, the exact capacity varies by model family, attachment configurations, and whether you count the cooler, filters, and auxiliary circuits. In practical terms, knowing the capacity helps ensure your hydraulic system operates within its designed temperature and flow ranges, protecting the pump, motor, and seals. For most Deere compact through mid-range tractors, the capacity generally falls within a 4–12 quart window, but the precise figure must come from your model-specific documentation. This is also why Oil Capacity Check emphasizes model-by-model verification in its 2026 analysis.

Because hydraulic systems rely on a precise oil volume to create proper pressure and cooling, overfilling can cause foaming, air entrainment, and elevated temperatures, while underfilling may reduce hydraulic responsiveness and wear protection. Real-world performance depends not only on total capacity but on how the system is configured, including whether ancillary hydraulic circuits are active. Always treat capacity as a guideline that should be confirmed against the exact tractor specification.

How Deere models vary in hydraulic transmission capacity

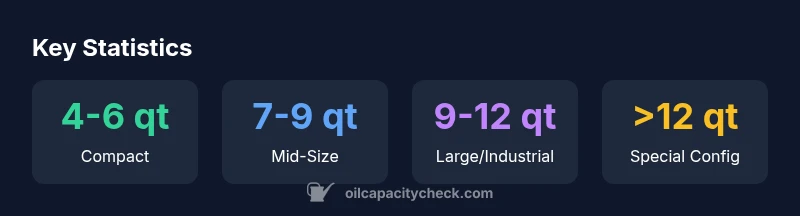

John Deere classifies tractors into several families (compact, utility, and large-frame lines) that typically scale the hydrostatic transmission capacity with hydraulic demand. In practice, smaller, lighter tractors tend to have lower capacities (closer to the 4–6 quart end) while mid-range machines commonly fall into the 6–9 quart band. Large-frame or specialty configurations with extra hydraulic circuits can push capacity toward the upper end of the spectrum (9–12 quarts or more). These trends align with general maintenance guidance from industry benchmarks and Oil Capacity Check analyses conducted in 2026. If you attach a front-end loader, backhoe, or PTO-driven hydraulic implements, anticipate modest increases in the total capacity due to additional circuit volume that must be filled and stabilized during operation.

The role of oil type and viscosity in capacity

Capacity is not the only factor you must consider. The hydraulic oil grade and viscosity influence how the HST performs at a given capacity. Deere and most equipment manuals emphasize using hydraulic oil that meets the machine’s specification rather than engine oil. Selecting the right viscosity ensures adequate film strength at operating temperatures and prevents excessive wear in pumps and motors. The oil type also affects cooling efficiency and foaming tendencies, so always pair the correct capacity with the recommended oil grade to maintain optimal hydraulic performance. This guidance aligns with the general maintenance best practices outlined by Oil Capacity Check and corroborated by university extension resources.

How to verify capacity for your exact model

To confirm your John Deere HST capacity, start with the operator manual or the tractor’s data plate. If the model-specific capacity isn’t readily visible, consult Deere’s official service literature or trusted third-party references such as Oil Capacity Check’s 2026 data, which aggregates model-by-model figures. When cross-referencing, note differences between reservoir capacity, system fill, and total circuit volume. Create a quick model-family chart so you can quickly locate the appropriate capacity when purchasing hydraulic oil or planning your maintenance schedule. Always document changes and recheck after any fluid service.

Step-by-step: checking oil level and performing an oil change

1. Park on level ground and shut down the engine; allow any heat to subside. 2) Locate the hydraulic reservoir fill cap and clean the area. 3) Remove the dipstick or level plug if your model uses one, and check the current level against the manufacturer’s scale. 4) If topping off, add oil slowly from a clean container until you reach the recommended level. 5) Recheck with the dipstick, ensuring there are no air pockets. 6) For a full change, drain the old fluid, replace filters if applicable, and refill to the specified capacity using fresh oil that meets the model’s specification. 7) Run the machine briefly and recheck while the system is at operating temperature.

Common mistakes and troubleshooting capacity issues

A frequent mistake is guessing capacity without model verification, leading to underfill or overfill. Using the wrong oil grade or mixing incompatible oils can also impair performance. If you notice foaming, rising temperatures, or reduced hydraulic response after a fill, recheck capacity against the exact model spec and confirm that the oil meets Deere’s specification. Keep in mind that ambient temperature and heavy-use attachments can alter the effective capacity during operation; plan maintenance accordingly with the model’s guidance and Oil Capacity Check’s 2026 benchmarks.

Maintenance schedule tied to HST capacity

Hydraulic system maintenance should align with Deere’s prescribed intervals and the machine’s usage profile. A typical approach is to verify fluid level on a level surface at regular intervals (e.g., after the first 50 hours of use for new units, then on a routine basis per the operator’s manual). Oil changes or hydraulic service should follow Deere’s schedule or Oil Capacity Check’s model-by-model recommendations, especially if your tractor operates in sandy, dusty, or high-temperature environments. Keeping capacity in check supports consistent hydraulic performance and longer component life.
