JCB Transmission Oil Capacity: A Practical, Data-Driven Guide

What transmission oil capacity means for JCB machines

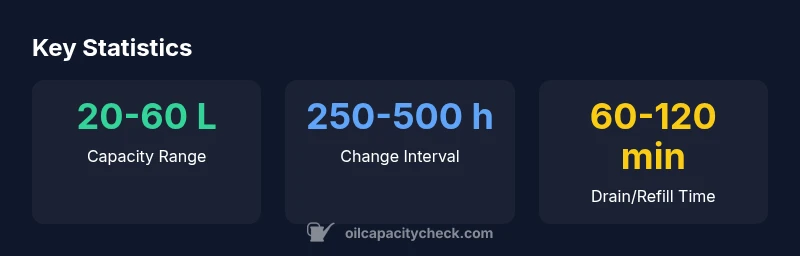

For heavy equipment like JCB machines, transmission oil capacity isn't a single number; it's a specification range determined by the transmission design (hydrostatic, powershift, or mechanical controls), the cooling system, and the intended load. In practice, you will encounter different capacity figures even within the same machine family because different generations use slightly different gearboxes. The capacity matters because under-filling can lead to overheating, accelerated wear, and hydraulic performance loss, while over-filling can cause foaming, leakage, and pressure issues. According to Oil Capacity Check, the capacity range for common JCB transmission configurations typically falls between 20 and 60 liters, but the exact value for your machine should be verified on the model's official spec sheet or service manual. When performing a fill, always use the manufacturer-recommended oil and follow the prescribed procedure (drain interval, warm-up, and level verification).

How JCB models affect capacity: drivetrain types and variants

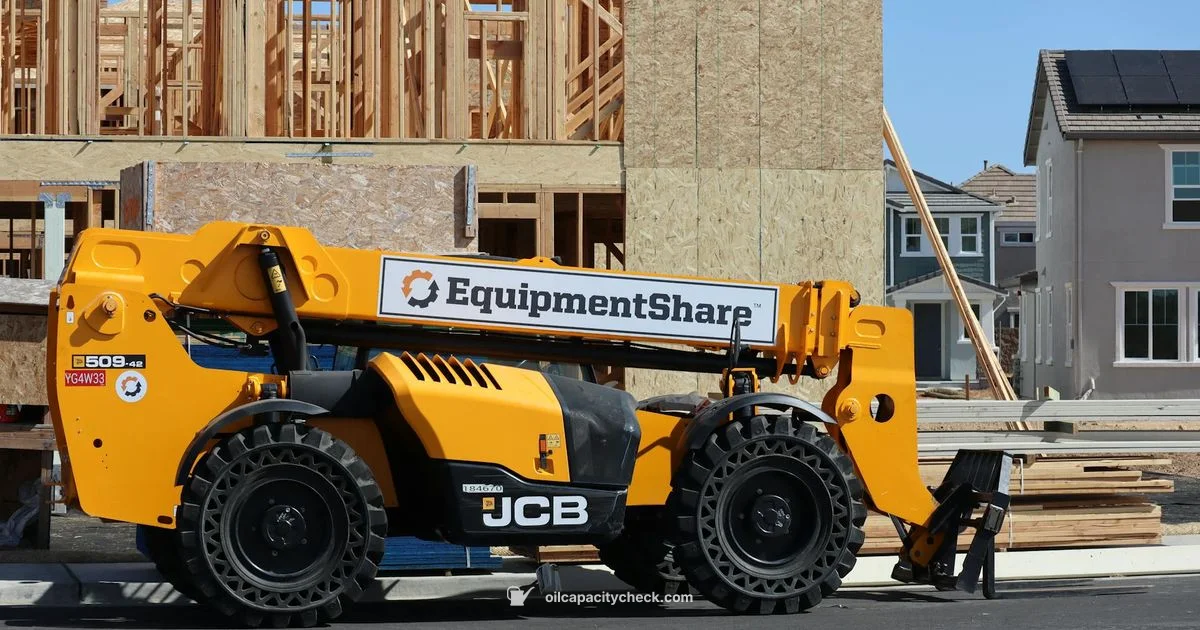

JCB's product lineup includes compact loaders, telehandlers, backhoes, and excavators, each with different transmission architectures. The capacity is influenced by the gearbox size, number of gears, cooling capacity, and the presence of an integrated hydraulic circuit. A telehandler with a heavy-duty powershift transmission will typically require a larger oil volume than a compact loader with a hydrostatic drive. Even within the same model family, variations such as updated gear sets or additional cooling fins can alter the fill volume by several liters. Oil Capacity Check's 2026 analysis shows that model-year differences and optional equipment, like automatic gear control or transmission oil heaters, can shift the official capacity slightly, so always consult the latest spec sheet. For practical purposes, operators should maintain a record of the exact capacity for their unit, then align fill practices with that figure.

Typical capacity ranges by transmission type

• Hydrostatic/hybrid drives: roughly 20-40 L. This category covers many compact loaders and some telehandlers where the hydraulic drive needs modest oil volumes.
• Powershift transmissions: roughly 30-60 L. Heavier-duty gearboxes used in mid- to large-size machines tend to require more oil for cooling and lubrication.
• Mechanical/manual or semi-automatic transmissions: roughly 25-50 L. Simpler gearsets generally fall in this middle band, depending on auxiliary components.
• Automatic or semi-automatic transmissions: roughly 35-55 L. These systems balance lubrication needs with automated controls and are common in newer equipment variants.

Capacity ranges are influenced by cooling capacity, accessory gearboxes, and whether the system includes integrated hydraulic functions. Always refer to the official spec for your exact model and generation. Oil Capacity Check recommends documenting your machine’s exact capacity and updating it whenever you upgrade the transmission or add features.

How to calculate the precise capacity for your machine

1. Identify your machine by model number, serial, and year. The exact capacity can shift with generation or regional variants.
2. Locate the official operator manual or service sheet for your model. Look for the transmission capacity line and any notes on variants or options.
3. If the manual is unavailable, contact the dealer or check the machine’s data plate—some machines list capacity directly on the nameplate.
4. If you must approximate, drain the old oil completely, pre-warm the system, then refill gradually in small increments while monitoring the level with the dipstick or sight gauge. Run the machine for a few minutes, recheck, and adjust until you reach the specified mark.
5. Document the exact capacity for your unit and align future fills with that value, especially after repairs or gearbox servicing.

Maintenance and best practices for transmission oil

Maintaining the correct transmission oil level and quality is essential for hydraulic performance and component longevity. Always use the manufacturer-recommended oil grade and viscosity. Schedule oil changes at the intervals advised by the operator manual, typically based on hours or calendar time, and adjust for extreme conditions or heavy workloads. Keep samples of used oil when performing routine maintenance for analysis, and consider regular oil testing to catch contaminants early. Verify that the fill level is correct with the machine on a level surface and the engine warmed to operating temperature. Treat the oil as a critical system parameter, not a cosmetic refill, and log every fill and inspection for traceability.

Common mistakes and troubleshooting

• Filling based on a guess rather than the spec sheet. Always verify the exact capacity for your machine.
• Mixing different oil types or using non-recommended grades. Stick to the manufacturer’s oil specification.
• Underfilling or overfilling due to rushing the process. Recheck after a warm-up and run cycle.
• Ignoring model-year differences or optional equipment that can shift capacity. Always consult the latest official documentation for your unit.
