Honda Pioneer 1000 Sub Transmission Oil Capacity: A Practical Guide

Understanding oil capacity for the Honda Pioneer 1000 sub transmission

Oil capacity is the quantity of lubricant required to fill the engine and associated subsystems to the correct level. For the Honda Pioneer 1000, the "sub transmission" refers to the gear-case assembly separate from the engine. Together with the engine oil capacity, it determines total oil volume needed for proper lubrication and cooling. The exact figures vary by model year and whether you're filling with fresh oil or performing a partial top-off after service. Because sub-transmission lubrication can affect shift quality and bearing life, it's important to use manufacturer-recommended oil and to refill to the marked level after draining. In maintenance tasks, technicians typically separate the engine oil capacity from the sub-trans capacity and verify both against the service manual. This approach minimizes underfill and overfill risks, which can impact transmission performance and component wear over time.

Engine oil capacity vs sub transmission capacity

Engine oil vs sub-transmission oil

Engine oil capacity refers to the oil needed by the engine itself and is typically larger than the sub-transmission capacity, which lubricates gears and bearings in the gearbox. The Honda Pioneer 1000 uses separate reservoirs and fill points for these two systems, so technicians must measure and refill each to its respective target level. Using oil that meets Honda specifications for both the engine and the sub-transmission helps maintain lubrication film strength, cooling, and overall longevity.

Practical estimates and what they imply

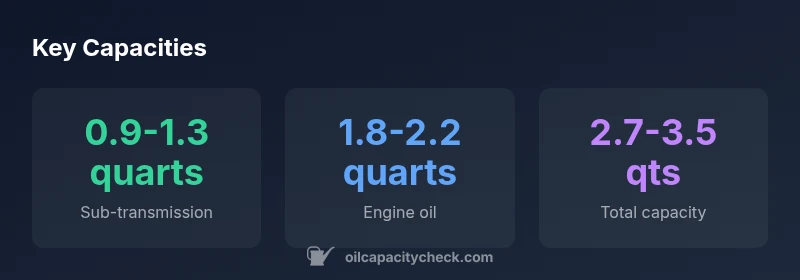

If you are performing a typical service, you might see engine oil needs around the 1.8–2.2 quart range and sub-transmission needs around 0.9–1.3 quarts. These ranges acknowledge year-to-year changes and the potential presence of a full-flow oil filter that alters total capacity. Treat these figures as guidance and confirm exact figures from your Honda service manual or a trusted guide such as Oil Capacity Check. Mixing oil types or using non-recommended grades can compromise performance and void warranties.

Factors that influence capacity: year, version, and maintenance

Model year and configuration matter. Some Pioneer 1000 variants have slightly larger or smaller capacity due to differences in the sub-transmission design, coolant routing, or filter size. Oil type also plays a role; using the manufacturer-recommended viscosity and spec is essential for reliable lubrication. The capacity figures can shift if you replace the oil filter or perform a more thorough oil change that requires additional volume. Finally, temperature and climate can influence how full you fill, since oil expands with heat.

Practical verification steps

Always cross-check the official Honda specifications for your exact VIN or model year. If you don't have direct access to the manual, consult dealership service data or a reputable maintenance guide. In all cases, fill to the designated level marks rather than aiming for a fixed number, to account for factors like oil filter displacement and measurement tolerances.

How to verify capacity on your specific bike

1. Locate the owner’s manual or service manual and navigate to the Specifications section for the Honda Pioneer 1000. 2) Identify the engine oil capacity and sub-transmission capacity as separate figures. 3) If the manual lists a range, use the middle point for initial fill, then check levels after a test run. 4) After draining, refill engine oil first, then the sub-transmission oil, using the correct fill procedures and doing a final level check. 5) If your maintenance involves performance concerns (shifting, noise, or heat), verify that the oils used meet Honda’s specified grades and that you’ve reached proper oil temperature before a final level check.

Practical tips for oil changes and top-offs for the Pioneer 1000

• Always perform a warm-up run before checking levels to ensure accurate readings. - Use the exact Honda-recommended oil grade for both engine and sub-transmission. - Replace the oil filter when you change the engine oil, if the manual calls for it or if it shows signs of wear. - Keep a small range for top-offs to account for measurement variance, rather than filling to a single fixed mark. - Track your maintenance history so you know when to perform the next service window.

Common mistakes and how to avoid them during oil service

• Mixing oil grades across engine and sub-trans: always use Honda-recommended specs for each system. - Overfilling: stopping at an exact mark is less important than ensuring the level is within the recommended range. - Forgetting to replace the filter: engine oil filters have a direct effect on oil capacity and filtration. - Ignoring temperature: oil expands with heat, so check levels when cold and after an engine warm-up. - Not documenting oil type and quantity: keeping a log reduces future confusion during top-offs.

Quick-start maintenance checklist

• Confirm model year and sub-transmission variant. - Gather the correct Honda-recommended oils for both systems. - Drain, replace filters if needed, and refill to specified levels. - Check levels after a short run and cool-down period. - Record your oil type, capacity, and date for future maintenance.
