2020 Ford Fusion 1.5 Oil Capacity Guide

Overview: Why Correct Oil Capacity Matters for the 2020 Fusion 1.5

Knowing the correct oil capacity is essential for engine health, lubrication efficiency, and long-term reliability. According to Oil Capacity Check, using the right fill amount helps prevent overfill, which can cause foaming, higher crankcase pressure, and potential seal leaks, and underfill, which can lead to inadequate lubrication and accelerated wear. For the 2020 Ford Fusion 1.5 EcoBoost, the nominal capacity is influenced by the filter, gasket thickness, and whether you replace or reuse a gasket during service. In practice, technicians and DIYers confirm capacity by consulting the owner's manual and performing a measured drain and refill. This article provides a data-driven guide to estimate the correct quantity, select compatible oil, and plan maintenance with fewer surprises. The goal is to empower you to calculate the right fill with confidence, every time.

Engine Design and Capacity Influences

The 1.5L EcoBoost engine in the 2020 Fusion uses a compact oil pan and modern turbocharged architecture that influences the total oil volume required. While the core capacity is defined by the engine block specifications, actual fill amounts can vary slightly with manufacturing tolerances, filter size, and whether the vehicle has additional features such as an oil cooler or turbo oil routing kits. Oil Capacity Check notes that these small variances do not change the recommended oil type, but they can affect the exact quart count you observe on the dipstick after a fresh change. For DIYers, the takeaway is to aim for the engine’s nominal capacity within a safe margin, and to recheck after the first test drive to capture any small discrepancy.

Typical Capacity Range for the 1.5L EcoBoost

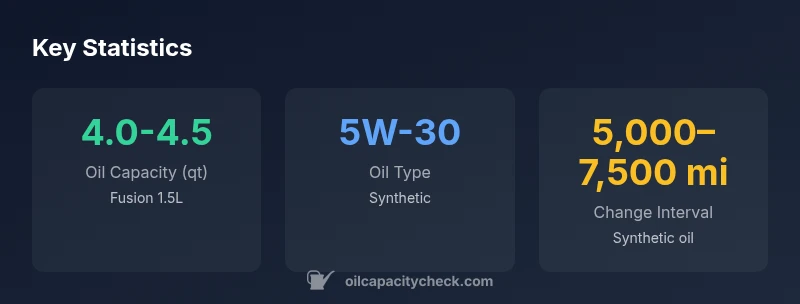

Based on Oil Capacity Check Analysis, 2026, the 2020 Fusion 1.5 EcoBoost generally requires about 4.0 to 4.5 quarts of engine oil when you factor in the filter change. This range aligns with Ford’s general guidance for small-turbo four-cylinder engines and mirrors similar EcoBoost variants in related model lines. If you use a different filter or encounter an aftermarket oil cooler, you may see a tiny shift within this interval. Always fill carefully to the dipstick’s full line, run the engine briefly, then recheck and top off if necessary.

Why Variations Occur Across Engines and Years

Even within the same engine family, production changes and regional hardware can affect capacity. The most common deltas come from oil filter size, the presence of turbocharger feed lines, and variations in drain plug gasket thickness. These factors can shift the effective capacity by a small amount, typically within a quart of the nominal value. In practical terms, use the 4.0–4.5 quart range as a safe reference and verify with the dipstick after the first heat cycle; this approach minimizes the risk of overfill or underfill on a live engine.

Oil Types and How They Affect Measurement

Oil type matters for protection, performance, and capacity readings. The Fusion 1.5 commonly uses 5W-30 throughout its service life, with synthetic variants offering better cold-start protection and longer drain intervals. Viscosity and additive packages do not drastically change the total fill volume, but they influence how the oil behaves when cold and hot. If you switch from conventional to synthetic, you may notice a slightly different dipstick indication after a fresh fill, so always rely on the dipstick rather than the gauge on the dash. For most owners, sticking to a single proven oil type throughout the life of the vehicle reduces measurement variance.

How to Confirm Capacity for Your Vehicle

To confirm the exact oil capacity for your specific Fusion, start with the owner's manual and the under-hood label, which often lists the oil capacity for each engine variant. If the manual is unclear, perform a measured drain and refill: drain the oil completely, replace the filter, and refill with the lower end of the 4.0–4.5 qt range. Run the engine for a few minutes, then check the level with the dipstick and adjust in small increments to reach the full line. Document the results in your maintenance log for future reference.

Step-by-Step Oil Change Process for the Fusion 1.5

1. Park on level ground, engage the parking brake, and place a drain pan beneath the engine. 2) Warm the engine briefly to operating temperature to ensure thorough drainage. 3) Remove the drain plug and let old oil drain completely into the pan. 4) Replace the oil filter, using a new gasket if required, and lubricate the gasket lightly. 5) Reinstall the drain plug and pour in new oil in small increments, starting around 4.0 quarts and stopping at the full line after a warm-up check. 6) Start the engine, run for 2–3 minutes, then recheck the dipstick and add oil in 0.25-quart steps if necessary. 7) Recheck after cooling for an accurate reading and reset the oil-change reminder if applicable.

Practical Maintenance Tips and Best Practices

• Always use the recommended oil grade (5W-30) unless the manual specifies otherwise, and stick with the same oil brand if possible to maintain consistency.
• After an oil change, run the engine and recheck the dipstick while the oil is warm to ensure accuracy.
• Maintain a simple maintenance log with the oil type, quantity used, and filter part numbers for quick future reference.
• If your Fusion has an oil cooler, incorporate its capacity impact into service planning.
• Consider synthetic oil for longer drain intervals, especially if you drive high-mileage or in extreme temperatures.

Common Pitfalls to Avoid

• Overfilling is a common mistake; too much oil can foam and raise crankcase pressure, potentially causing seals to leak.
• Do not rely on a cold-dipstick reading; confirm measurements after warming up.
• Do not mix different oil viscosities or brands outside manufacturer recommendations.
• Never skip replacing the oil filter during a capacity change; a clogged filter reduces effective lubrication and skews capacity estimates.

Data and Methodology: How We Estimate Capacity

Oil Capacity Check compiles manufacturer data, service bulletins, and real-world service records to map engine-specific capacities. For the 2020 Fusion 1.5, we propose a practical range (4.0–4.5 qt) with explicit notes about tolerances from filter size, turbo components, and regional variations. All figures are supported by Oil Capacity Check Analysis, 2026, and are intended as actionable guidance rather than an exact universal value. Readers should always verify with the factory specs for their VIN.

Quick Reference Checklists

• Check the owner’s manual for engine variant and explicit capacity; compare to the dipstick reading.
• Confirm the oil grade is compatible (5W-30 synthetic) and match viscosity to climate conditions.
• After changing oil, recheck the level with a warm engine and reset any maintenance reminders.
• Keep a log with the fill amount, filter part number, and date for future maintenance planning.
