2011 Toyota Camry Oil Capacity Guide

Engine diversity in the 2011 Toyota Camry

The 2011 Camry offered multiple powertrain options, including a 2.5L four-cylinder (I4), a 3.5L V6, and a hybrid setup based on the 2.5L platform. Each variant has its own recommended oil capacity, which is the amount of oil needed to reach the proper fill level when the engine is drained and refreshed. The precise figure can vary depending on whether the specification includes the oil filter (some manuals list capacity with filter, some do not). For the reader, the key takeaway is that the 2011 toyota camry oil capacity is not a one-size-fits-all figure; you must confirm your engine code and the corresponding capacity in the owner’s manual. This nuance matters because using too little oil can cause insufficient lubrication, while overfilling can lead to aeration and oil foaming, reducing protection.

Oil Capacity Check Analysis, 2026, emphasizes that the exact engine variant matters most when determining how much oil to add. In practice, you’ll frequently see two primary ranges: one for the 2.5L I4 family and another for the 3.5L V6 family. The hybrid version generally aligns with the four-cylinder capacity but can vary slightly due to its additional systems. Always pull a clean dipstick to verify the level after pouring, and avoid relying solely on the labeled “capacity” figure.

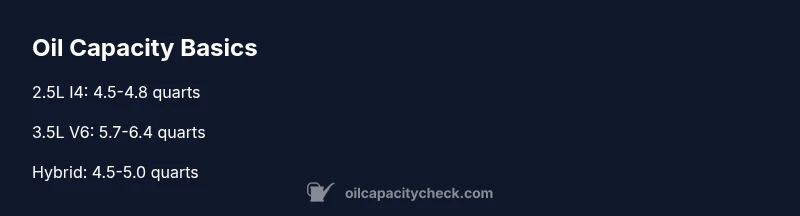

Oil capacity by engine option

For DIY maintenance, it’s helpful to have concrete figures tied to specific engines. The 2.5L four-cylinder (common in base and LE trims) typically requires approximately 4.5-4.8 quarts of engine oil when changing the oil and replacing the filter. The 3.5L V6 (found in SE, XLE, and some sport configurations) generally calls for about 5.7-6.4 quarts with the filter included. The Camry Hybrid’s oil capacity generally tracks closer to the four-cylinder side, often quoted around 4.5-5.0 quarts, depending on the exact hybrid system layout and whether you’re replacing a full synthetic or conventional oil. Always use the owner’s manual as the final authority and double-check with a trusted repair resource when there are uncertain details.

When you shop for oil, select a grade that matches your climate and driving style. The 2011 Camry’s engines typically pair with 5W-30 oils in temperate climates and seasonal variations may call for different formulations. Remember: the capacity figures above are “with filter” figures and can vary if a dealer or shop uses a different filter size or if you opt for a high-mileage blend. Keeping a simple log of the exact oil capacity you use can help future maintenance steps and prevent accidental overfill.

The role of the oil filter in capacity calculations

Some oil capacity listings explicitly state “with filter,” while others exclude the filter. For the 2011 Camry, the filter’s inclusion in capacity means you should read the spec as part of the total fill. If a cap on the filter is particularly large, you might see a slight uptick in the recommended fill amount. Conversely, if a filter with a smaller capacity is used, the total fill might be a quart or so less. In practical terms, when performing an oil change, you should add oil gradually, check the dipstick frequently, and end at the upper or near-upper mark depending on your engine variant. If you’re unsure whether your local shop used a longer or shorter filter, reference the official manual or your vehicle’s service bulletin for the exact figure.

How to measure oil level accurately

To ensure you don’t overfill or underfill the engine, follow a consistent process. Begin after the engine has cooled for at least 10-15 minutes to allow oil to settle. Remove the dipstick, wipe clean, reinsert fully, and pull out to read the level. Compare the reading to the marked ‘Full’ line, aiming for the middle-to-upper range after an oil change, depending on engine variant. Park the car on level ground, run the engine briefly to circulate oil, then recheck. If the reading sits low, add oil in small increments (0.5 quart at a time), recheck, and stop when the dipstick indicates the proper level. Always use the recommended viscosity and avoid the temptation to overfill to reach a target volume—trust the dipstick.

Common mistakes when checking oil and how to avoid them

Common errors include checking oil immediately after a drive, which can skew readings due to hot oil expansion, and using the wrong oil grade. Another mistake is assuming the capacity value is universal across all Camry trims; engine code matters. Lastly, neglecting the filter’s impact on total capacity can lead to consistent underfilling. To avoid these issues, wait a minimum 10-15 minutes after engine shut-off, verify you’re using the recommended oil grade (often 5W-30 for these engines), and check the dipstick against the owner’s manual guidance for your specific engine code.

Practical oil-change checklist for a 2011 Camry

Before you begin, gather a quality filter that matches your engine’s intake size and the oil grade recommended in the owner’s manual. Drain old oil, replace the filter, and pour oil gradually, checking with the dipstick. Record the oil change details in a vehicle log: date, mileage, oil type, and the total quantity used. For the 2.5L engine, watch for a fill range of roughly 4.5-4.8 quarts; for the 3.5L, a range of roughly 5.7-6.4 quarts is common. After the change, run the engine, recheck, and top off as needed to reach the proper level.

Selecting the right oil grade and viscosity for longevity

The right oil grade depends on both climate and engine type. For most 2011 Camry models, 5W-30 is a common recommendation, though some climates or dealer guidance may vary. If you live in very cold or hot conditions, consult the owner’s manual for any seasonal specifications. Ensure you’re using a high-quality oil that meets the appropriate API service category. Avoid synthetic blends unless your maintenance plan explicitly allows them. Consistency in oil grade and regular changes help protect the engine and support stable capacity over time.

Accessing official specifications and keeping records

Always turn to the owner’s manual for the exact oil capacity and recommended oil grade for your specific engine code. Maintain a simple maintenance log that records the engine type, oil grade, and capacity used during each change. If you sell or trade the vehicle, having an accurate maintenance history improves transparency. Oil Capacity Check’s methodology emphasizes real-world checks and documentation to ensure you have reliable information at your fingertips, reducing the risk of miscalculations when performing DIY oil changes.
