2007 Honda CR-V Oil Capacity Guide

Oil Capacity Basics for the 2007 CR-V

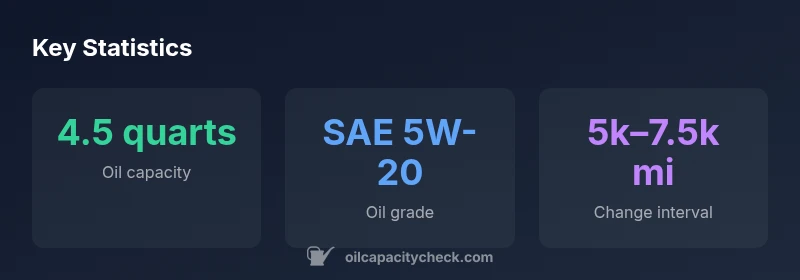

The 2007 Honda CR-V is powered by the 2.4L inline-4 engine, commonly designated as the K24 family. The engine’s total oil capacity with a fresh oil filter installed is typically 4.5 quarts. This figure includes the oil that remains in the passages and filter and reflects a full-drain, full-refill procedure. When people talk about capacity, they’re often referring to the amount needed to fill from empty to the full mark after a complete drain. Real-world conditions, such as pan size variations or different filter part numbers, can cause minor adjustments in your final fill amount. For DIYers, starting with 4.5 quarts and then topping up to the dipstick mark is a practical approach.

Engine Variants and Capacity

For the 2007 CR-V, most owners with the 2.4L engine will share the same oil capacity irrespective of drivetrain (FWD vs AWD) or body trim. The critical factor is ensuring the filter is installed (you can’t skip the filter if you want accurate capacity and proper filtration). Draining the old oil, replacing the drain plug gasket, replacing the oil filter, and then refilling is the standard sequence. When you’re finished, allow a few minutes for the oil to settle before checking with the dipstick. If you’ve recently replaced the oil filter with a different part number, recheck capacity against the new fit and refer to your service manual.

How to Measure and Verify Oil Level

Begin with a cold engine and a level surface. Remove the dipstick, wipe clean, reinsert fully, and pull it again to check the level. If you’ve drained and refilled, aim to bring the oil level to the full mark. If you’re within a quart of the full line after initial fill, wait a few minutes and recheck, as oil can settle unevenly. Always verify the final level by visually inspecting the dipstick and ensuring the oil appears amber and free of contaminants. For accuracy, use a funnel to avoid spills and wipe the dipstick clean before rechecking.

Oil Types and Viscosity Recommendations

Honda generally recommends an SAE 5W-20 grade for most 2.4L engines in this era, though you should confirm the exact specification in your owner’s manual. You can use synthetic or conventional oils as long as the grade is 5W-20 and the oil meets the API service requirements. If you live in extreme climates, some operators prefer a synthetic blend for consistency in temperature swings. When selecting oil, consider the vehicle’s age and the vehicle’s maintenance history; sticking to a quality brand and changing the oil filter at every drain supports engine longevity.

Step-by-Step: Draining and Replacing Oil on a 2007 CR-V

1. Prepare the vehicle on a level surface and engage the parking brake. 2) Warm the engine for 3–5 minutes, then turn off and raise the front. 3) Remove the drain plug and catch old oil in a safe container. 4) Remove the old filter and replace with a new one, lubricating the gasket with a bit of new oil. 5) Reinstall the drain plug and torque to spec. 6) Refill with new oil in increments, starting with around 4.5 quarts. 7) Start the engine and run for a minute, then check for leaks. 8) Turn off and recheck the oil level with the dipstick, topping off to the full line.

Common Pitfalls and Maintenance Tips

• Overfilling can cause foaming and increased pressure; always aim for the full mark. - Mixing old and new oil can reduce performance; always drain completely before refilling. - Using an incorrect filter can affect capacity reading; select the recommended filter size. - Don’t forget to reset or record the maintenance minder (if applicable) to maintain service intervals.

Quick reference: Tools and supplies for the 2007 CR-V oil change

Keep a spare bottle of SAE 5W-20, a compatible oil filter, a drain pan, a funnel, a new drain plug gasket, and a torque wrench. This set of items will support a clean, correct drain and refill on the 2007 CR-V and other vehicles in your fleet.
