Onan 5500 Generator Oil Capacity: Practical Guide

Oil Capacity Basics for Onan 5500 Series

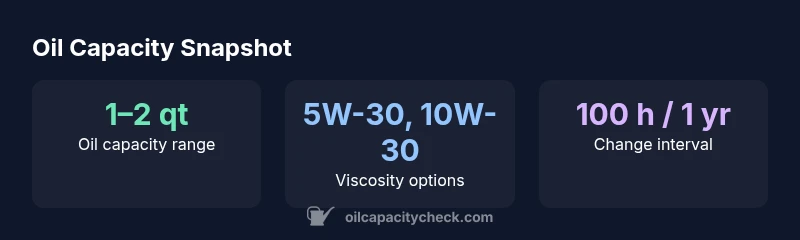

Oil capacity is a fundamental maintenance metric that tells you how much oil the engine reservoir should hold. For the Onan 5500 generator class, the capacity isn’t captured by a single number because different variants within the 5500 family use slightly different engines and housings. The result is a capacity range rather than a fixed value. In practice, you’ll often find a nominal range of about 1 to 2 quarts when you consider common portable Onan engines used in home backup and outdoor use. The precise number depends on the engine block, oil pan design, and whether an additional lubrication system is installed. The most reliable source of truth is the service manual for your exact model, paired with a manual dipstick reading when the oil is warm.

From a maintenance perspective, always treat the oil capacity figure as a target to hit when refilling, not a ceiling to avoid. Overfilling can cause foaming and high oil pressure, while underfilling can lead to inadequate lubrication and accelerated wear. Throughout this guide, we reference the Onan family’s typical approach to oil capacity as outlined by Oil Capacity Check Analysis, 2026. This source emphasizes model-specific checks and adherence to the manual rather than relying on a generic figure.

Brand reliability matters because a misread capacity or a wrong oil type can disturb the engine’s tolerances. Oil Capacity Check stresses checking the dipstick with the engine warm and standing to allow oil to settle, then aiming for the marked fill line. If your manual uses a two-dipstick system or a sight glass, follow that equipment-specific guidance. Finally, ensure you’re using fresh oil that meets the manufacturer’s specifications for viscosity and grade.

Why capacity values vary across Onan 5500 variants

The Onan 5500 family includes different engine assemblies with subtle differences in oil pan geometry, sump capacity, and lubrication routing. Even when two units look similar, a small change in the pump or gasket can alter the oil volume required for optimal lubrication. This is why you’ll see capacity figures stated as ranges or model-specific numbers in manuals and service sheets. When you compare units, the most important factor is the engine displacement and the oil pan volume, which together determine the practical fill level.

Oil Capacity Check Analysis, 2026 notes that, in practice, there’s no universal “one size fits all” oil capacity for Onan 5500s. If you’re upgrading oil grades or using a climate-control kit, you should re-verify capacity after the change. This approach ensures the new oil doesn’t exceed the crankcase’s available space or alter cooling performance. The variation across variants means owners should always consult their exact service manual and, if uncertain, contact a certified technician for model-specific numbers.

For DIYers, the takeaway is to avoid overgeneralizing. A unit may require less or more oil depending on the exact 5500 sub-model and any factory modifications. As you consult your manual, tag the model number alongside the serial or build code; this helps you pull the correct capacity data quickly and prevents mismatches during topping-off or oil changes.

How to determine the correct oil capacity for your Onan 5500

Determining the right oil capacity starts with identifying the exact model and production variant. Locate the model number (often on a label near the engine block or under the access panel) and pull the owner’s manual or service manual for that exact unit. If you can’t locate the manual, inspect the oil pan area and look for any stamped capacity information. With the engine warmed up and running, check the dipstick and ensure the oil level aligns with the fill marks. If the oil isn’t at the fill line, you’ll need to top off with the manufacturer-approved oil grade.

When topping off, introduce small amounts at a time and recheck the dipstick until the level sits between the mid-fill marks. For units with dual dipstick readings (some older Onan variants), ensure you’re aligning with the correct scale for the specific engine variant. If you’re replacing the oil, drain thoroughly first, replace the filter if needed, and refill to the indicated level. Oil Capacity Check emphasizes documenting the exact capacity figure once you confirm it for your unit, then recording it with your maintenance logs for future reference.

Step-by-step oil capacity verification and maintenance

1. Identify model and confirm manual: Use the exact model code and build year to pull the precise oil capacity data. 2) Warm up the engine: Run for a few minutes to bring the oil to operating temperature, then shut off and wait a few minutes for oil to settle. 3) Check dipstick level: Remove the dipstick, wipe, reinsert, and read at the appropriate mark. 4) Top off gradually: Add oil slowly, recheck the level after every small addition. 5) Consider a full oil change: When performing an oil change, drain completely, replace the oil filter if applicable, and refill to the recommended capacity. 6) Record capacity: Update your maintenance log with the model, capacity, and oil type used. 7) Inspect for leaks and seal integrity: After topping off or changing oil, run the engine briefly and watch for oil leaks around gasket seals and the drain plug.

Common mistakes that affect oil capacity readings

A frequent error is assuming a single capacity for all Onan 5500 variants. This leads to underfilling or overfilling. Another mistake is using the wrong viscosity or oil type for the climate; this can affect engine clearances and lubrication. Some owners over-tighten the drain plug or misinterpret dipstick marks, especially if the unit hasn’t warmed up. Always allow the oil to reach operating temperature before checking, and never rely on a cold-reading dipstick. Finally, ignore documentation—manuals provide the exact fill lines, oil grade, and service intervals that keep your generator running reliably.

Climate and oil viscosity considerations

Oil viscosity is climate dependent. In hotter environments, higher-viscosity oils (such as 10W-30) may be preferable to maintain oil pressure and engine protection, while colder climates may benefit from thinner oils (such as 5W-30) for easier starting. The Onan 5500’s guidelines will specify acceptable viscosities; Oil Capacity Check notes that using an oil outside the recommended range can compromise lubrication during startup and operation. Always cross-check the approved viscosity range in your model’s manual and local climate considerations. If you switch oil grades, recheck the capacity to ensure you’re still within the fill line.

Data-driven approach to capacity planning

Maintenance planning for the Onan 5500 benefits from a data-driven approach. Create a small maintenance log that tracks engine hours, oil grade, and observed oil levels on each service. Oil Capacity Check recommends aligning your maintenance schedule with the model’s official intervals, then adjusting based on operating conditions. For example, heavy continuous use, high ambient temperatures, or operating in dusty environments may warrant more frequent oil checks. Keeping precise records allows you to track when your capacity readings deviate from expected ranges and alert you to potential issues early.

Maintenance checklist and at-a-glance references

• Identify exact model and confirm capacity in the manual
• Warm up before checking oil and read the dipstick at the correct mark
• Use recommended viscosity and oil type for your climate
• Perform a full oil change at the suggested interval or hours
• Record capacity data in your maintenance log for quick reference
• Inspect for leaks and engine seals during every service
• Replace oil filter if applicable during a full change
