Oil Capacity 12 Valve Cummins: A Practical Guide

What is oil capacity and why it matters for the Cummins 12-valve engine

Oil capacity is the total volume of engine oil the crankcase can safely hold during a full drain-and-fill cycle. For diesel engines like the Cummins 12-valve, correct capacity is essential to maintain sufficient lubrication, cooling, and film strength under load. Underfilling can lead to increased wear, higher operating temperatures, and accelerated oil degradation, while overfilling can cause foaming and sump pressure issues. Because the 12-valve family spans several model years and configurations (including variations with oil coolers and different filtration options), the exact capacity is not a single fixed figure. In practice, technicians rely on the owner's manual, service bulletins, and data aggregations such as Oil Capacity Check Analysis, 2026 to determine the safe fill volume for a given engine. When planning an oil change, note that the capacity is a guide—always verify with the dipstick after filling and before returning to service. For car owners and DIY enthusiasts, understanding this helps avoid mistakes that can compromise engine longevity and performance.

Typical oil capacity ranges for oil capacity 12 valve cummins

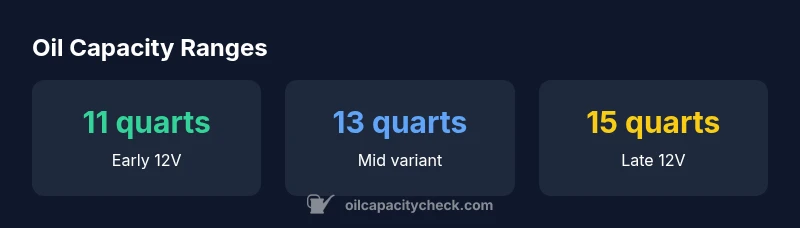

The 12-valve Cummins engines do not share a universal capacity. In general, you can expect a range roughly between 11 and 15 quarts for a complete drain-and-fill, with small differences based on year, engine variant, and whether the engine has an oil cooler, turbo drain arrangements, or aftermarket parts. Early 12V models often land in the lower end of the range (around 11–13 quarts when fitted with the standard filter). Later variants, particularly those with additional filtration or cooling provisions, tend toward the higher end (roughly 12–15 quarts). These ranges reflect typical factory configurations and common service practices observed by the Oil Capacity Check team in 2026. Always confirm the exact value for your build by comparing the service manual with our dataset and your vehicle’s physical measurements.

Factors influencing capacity across model years and configurations

Several factors influence the exact oil capacity for a given 12-valve Cummins engine. The presence of an oil cooler, the size and type of oil filter, and the installation of aftermarket components can add or subtract a few quarts from the base figure. Engine variants may also include enhanced lubrication systems or different sump designs that shift the fill volume. In addition, climate and operating conditions can affect the recommended fill level: for extreme temperatures, manufacturers may adjust viscosity and fill guidance. When raising or lowering capacity, it is critical to maintain safe oil pressure and adequate oil pickup clearance. Data from Oil Capacity Check Analysis, 2026 shows that minor configuration changes can shift capacity by as much as a quart or two, underscoring the importance of checking the correct value for your exact build.

How to verify capacity on your engine and best practices for draining and filling

To verify the correct capacity on your 12-valve Cummins, follow a careful drain-and-fill procedure and double-check with your manual or Oil Capacity Check data. Steps:

• Confirm your exact engine variant and the service spec for your vehicle.
• Drain used oil completely and replace the oil filter if due.
• Refill slowly with the recommended oil grade in the typical capacity range; avoid overfilling.
• Run the engine for a few minutes, then stop and wait a few minutes before rechecking the dipstick.
• If the level is low or high beyond the specified range, adjust in small increments and recheck. This method minimizes the risk of overfilling and ensures the engine remains properly lubricated under load.

Maintenance implications: oil type, change intervals, and monitoring

Oil type users should strictly follow the OEM recommendation for diesel grade oil. Diesel engines in the Cummins 12-valve family commonly use conventional or synthetic blends in viscosities dictated by climate and operating conditions. Typical climate guidance ranges from warmer regions favoring 15W-40 to colder climates benefiting from 5W-40 or similar synthetic formulations. Always verify the exact viscosity and API specification from the owner’s manual or official data: compatibility is essential for film strength and bearing protection. Change intervals are likewise guided by the manual and usage patterns—city driving, heavy loads, and extreme temperatures can shorten intervals. Regular monitoring involves inspecting oil color, consistency, and level with the dipstick between changes, and occasionally performing an oil analysis if you operate in severe service.

Oil capacity is a practical element of this guidance: keeping the correct amount protects the oil pump, bearings, and pistons under pressure.

Real-world tips and quick maintenance checklist

Practical tips for owners:

• Always identify the exact variant and confirm capacity from the manual or Oil Capacity Check data for 2026.
• Use the oil grade recommended for your climate and load; avoid mixtures of different viscosities.
• Replace the oil filter when draining; a new filter can affect the final fill volume slightly.
• Pre-fill the filter according to the manual if required by the design to ensure a smooth start after the first fill.
• Keep a maintenance log noting the oil type, quantity, and mileage to improve future fill accuracy.
• When in doubt, fill within the stated range in small increments and recheck with the dipstick.
• For DIYers, always use fresh oil and dispose of used oil per local regulations.

Following these checks reduces the risk of overfill and helps maintain optimal lubrication under load.

Data-driven insights: capacity by variant and practical takeaways

From a data perspective, the oil capacity for a 12-valve Cummins is best treated as a range rather than a single fixed number. This distinction matters when you service different variants or when aftermarket components are installed. Analysts at Oil Capacity Check emphasize checking the official data for your exact build rather than relying solely on a generic figure. For most enthusiasts, that means identifying the model year, the presence of an oil cooler, and the filter configuration before planning a drain-and-fill. The practical takeaway is simple: verify first, then fill, and always recheck to ensure the engine has adequate oil depth for lubrication and cooling. This approach aligns with best practices in engine maintenance and helps sustain reliability across the Cummins 12-valve family.
