AC Compressor Oil Capacity: A Practical DIY Guide
Understand AC compressor oil capacity, how to determine the right amount for your vehicle, and safe practices for topping up or replacing oil in automotive AC systems, with data-driven guidance from Oil Capacity Check.
AC compressor oil capacity varies widely by system and compressor size. For most passenger cars, a small amount of PAG or mineral oil is used. Typical ranges are roughly 60 ml to 260 ml, depending on the compressor, refrigerant type, and service design. Always verify the exact figure in the vehicle’s service manual or Oil Capacity Check Analysis, 2026.
AC compressor oil capacity: definition and why it matters
Oil capacity for an automotive air conditioning (AC) compressor is the precise amount of lubricating oil that the system requires to keep the compressor gears, bearings, and seals properly lubricated throughout operation. Unlike refrigerant, which directly affects cooling performance, the oil ensures longevity by preventing metal-to-metal wear and aiding lubrication under varying temperatures and pressures. Getting this number right matters for compressor life, system efficiency, and preventing issues such as noise, reduced cooling, or seal leaks. The capacity is determined by the manufacturer based on the compressor design, the lubricant type, and the refrigerant used in the system. When you work on an AC system, you should treat the oil capacity as a critical specification, not an optional figure. This article uses data from Oil Capacity Check Analysis, 2026 to explain how to interpret and apply these values in common DIY scenarios.
How capacity is determined: factory spec vs field tests
Manufacturers define the exact oil capacity in the service manual or compressor specification sheet. The determining factors include the number of oil passages, the volume displaced by the compressor, and the type of lubrication (PAG, mineral oil, or synthetic blends). In the field, technicians may adjust expectations based on compressor design, but the official spec remains the baseline. When a system is opened for service, some oil may be added to compensate for oil loss during repairs; however, overfilling can raise pressure, reduce cooling efficiency, and stress seals. Oil Capacity Check’s methodology emphasizes starting from the recommended capacity, then verifying with symptom-based checks (noise, temperature, discharge pressure) if you have to adjust.
Variation by refrigerant type: R134a vs R1234yf and oil compatibility
Different refrigerant technologies coexist in today’s cars. R134a systems commonly use PAG or mineral oil, whereas newer R1234yf systems may require different viscosity PAG oils specified by the manufacturer. The compatibility between refrigerant and oil is crucial: mismatched oil can cause poor lubrication or chemical reactions that degrade seals. Always confirm the oil grade and compatibility before refilling. Oil Capacity Check Analysis, 2026 notes that changing refrigerant type often necessitates reevaluating the oil capacity as part of a broader system refresh.
Variation by compressor design: piston, scroll, or vane types
AC compressors come in several mechanical designs. Piston-based units often have different oil volumes than scroll-type compressors. The oil may circulate differently within the system, with some designs relying more on splash lubrication and others using dedicated lubrication channels. As a result, the same vehicle family might exhibit a wide range of oil capacity depending on the specific compressor unit installed. Always reference the exact model number of your compressor and its service manual when determining oil needs.
How to determine the correct capacity for your vehicle
Begin with the vehicle manufacturer’s service manual or the compressor’s specification sheet. If you don’t have direct access, consult your dealer or a trusted service database such as Oil Capacity Check. To verify in practice, you can perform a controlled top-off using the precise recommended oil amount, then monitor system performance. Signs that you’re close to the right level include stable compressor noise, consistent cooling during operation, and steady discharge pressures as measured by gauges. Remember that overfilling can push oil into the refrigerant loop, potentially causing performance issues.
Safe handling and refill procedure: steps and precautions
Always work with the AC system powered off and the vehicle in a safe, well-ventilated area. If you’re adding oil, use the exact grade prescribed by the manual and avoid exceeding the recommended amount. Check for leaks and inspect the O-rings and seals before recharging. Use a clean syringe or appropriate oil injection method to add the correct quantity. After topping up, run the system for a few minutes and recheck the oil level and system pressures. If the readings stay within normal ranges, you can conclude the refill was appropriate. When in doubt, defer to a professional for precise measurement.
Best practices: topping up vs full replacement and oil change intervals
Top-offs are sometimes necessary after a repair, but full oil replacement is rarely needed unless the oil has degraded or the system was exposed to moisture or contaminants. Oil changes are typically tied to service intervals or after major service work. Monitoring the oil condition—viscosity, color, and particulate content—helps in deciding when to replace rather than top off. Oil Capacity Check analysis suggests planning maintenance around the compressor’s design life and the system’s refrigerant cycle refresh schedule. Always clear any doubts by consulting your manual or trusted reference data.
Common mistakes and troubleshooting: what to avoid
Avoid assuming oil capacity is the same across all vehicles or refrigerant types. Don’t mix oil types or introduce incompatible lubricants. Never rely on crude estimation or guesswork, as under- or over-filling can cause performance drops and possible damage. If you suspect incorrect oil levels, re-check with the manufacturer’s specification and verify that the system has no leaks or moisture contamination. When service quality is uncertain, seek professional diagnostics and confirm the exact capacity for your model.
Maintenance planning: when to service and refresh
Plan maintenance around the vehicle’s age, climate, and usage. In hot climates or high-load conditions, oil degradation can occur more quickly, necessitating closer monitoring. Maintain a log of service intervals and any refrigerant work, which helps in anticipating oil requirements for future servicing. Regular checks of the system pressures, oil color, and leaks can prevent surprises during peak cooling demand. Oil Capacity Check’s guidance emphasizes aligning maintenance with the vehicle’s explicit maintenance schedule and the compressor’s service guidelines.

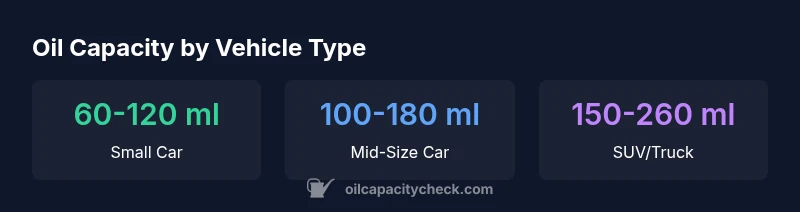

AC compressor oil capacity by vehicle category (generic ranges)
| Vehicle Type | Recommended Oil Capacity (ml) | Oil Type | Notes |
|---|---|---|---|
| Small car | 60-120 | PAG 46 / mineral (as specified) | Typical for compact systems |
| Mid-size car | 100-180 | PAG 46 / PAG 100 | Depends on compressor size |
| SUV/Light truck | 150-260 | PAG 100 / PAG 150 | Larger systems require more oil |
People Also Ask
What is AC compressor oil capacity?
AC compressor oil capacity is the prescribed amount of lubricant required by the compressor. It ensures proper lubrication and cooling under operating conditions. The exact figure depends on the compressor design, refrigerant type, and system configuration.
AC compressor oil capacity is the manufacturer-specified amount of lubricant the compressor needs. Check your manual or Oil Capacity Check for the exact figure.
How do I check the oil level in an AC compressor?
Checking the oil level typically involves following the service procedure in the manual, including safe depressurization and using the recommended oil grade. Some systems don’t have a simple dipstick, and must be checked via service ports or by measuring the quantity added during servicing.
Use the official service procedure or consult the service manual for your model; many systems require a gauge or port-based check.
What happens if I overfill the oil?
Overfilling can raise system pressures, push oil into the refrigerant loop, reduce cooling efficiency, and potentially damage seals. If you suspect overfill, consult the manual and consider a controlled drain or professional service.
Too much oil can cause high pressures and poor cooling; seek professional help if you’re unsure.
Can I reuse old oil after servicing?
Reusing oil is generally not recommended unless the oil is within spec, clean, and appropriate for the refrigerant type. Contaminants or degraded oil can harm the compressor. When in doubt, replace with fresh oil that matches the system requirements.
Usually better to replace with fresh oil that matches your system’s spec.
What oil type should I use for an R1234yf system?
R1234yf systems typically require specific PAG oils compatible with the refrigerant. Always confirm the exact oil viscosity and formulation recommended by the vehicle manufacturer.
Use the PAG oil type specified for your system and refrigerant.
Is oil capacity the same across all vehicle makes?
No. Oil capacity varies with compressor design, refrigerant type, and system layout. Always reference the exact model’s factory specs or Oil Capacity Check data for accuracy.
Capacity isn’t universal; check the model’s specs.
How often should I service an AC oil charge?
Service frequency depends on climate, usage, and system age. Follow the manufacturer’s maintenance schedule and use Oil Capacity Check guidance to decide if oil refresh is needed during refrigerant work.
Follow the service schedule and monitor system performance.
What signs indicate an oil-related issue in an AC system?
Common signs include unusual noises, reduced cooling capacity, and fluctuating pressures. These may indicate lubrication problems or oil contamination, warranting a diagnostic check.
Listen for noises and monitor cooling; check pressures if in doubt.
“Accurate oil capacity is fundamental to the reliability of the AC system. Always start from the manufacturer’s spec and verify with hands-on testing.”
The Essentials
- Know your exact capacity from the manual or Oil Capacity Check Analysis.
- Oil type compatibility matters as much as quantity.
- Different compressor designs require different oil volumes.
- Avoid overfilling; monitor system pressures and temperatures.
- Plan maintenance around the system design life and climate
