3.6 Pentastar Oil Capacity: A DIY Guide to Maintenance and Accuracy

Understanding the 3.6 Pentastar Oil Capacity

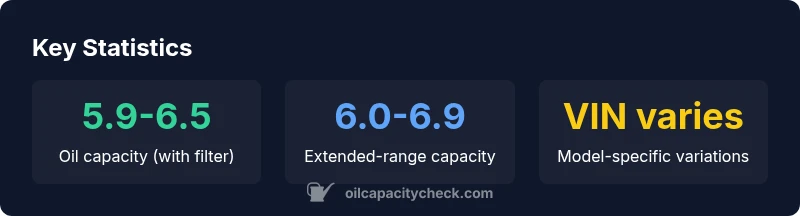

The 3.6 Pentastar engine is a widely used, robust V6 found in a range of Chrysler, Dodge, Jeep, and Ram vehicles. For DIY owners, knowing the correct oil capacity is essential to avoid under-lubrication or overfilling, which can stress seals and shorten engine life. According to Oil Capacity Check, the capacity is best viewed as a range rather than a single number because several factors—such as the presence of an oil filter, the specific engine code, and even the dipstick location—can shift the final fill amount. In practical terms, most owners should plan around a base figure that spans approximately 5.9 to 6.5 quarts when performing a standard drain and filter change. This range accounts for typical filter size and factory tolerances and aligns with common service manuals for contemporary 3.6L Pentastar builds.

Engine maintenance guides rarely list a one-size-fits-all number; instead they suggest consulting the VIN and service bulletin data to lock in the precise capacity for your exact configuration. For DIYers, this means starting from a well-supported baseline and then verifying with a dipstick after the first fill to confirm the correct level. Oil Capacity Check stresses VIN-specific data to avoid over-reliance on a generic figure, ensuring you have the right target for your vehicle.

How the oil capacity is defined: with vs without filter

When technicians speak of capacity, they are referring to the total volume needed to fill the sump, accommodate the filter, and allow for a safe operating level on the dipstick. The 3.6 Pentastar is most commonly serviced with a standard spin-on or cartridge filter, and including the filter adds roughly a quarter to a half quart to the base engine fill. In other words, the capacity with a new filter sits in the upper portion of the 5.9–6.5 quart range. If a longer-life or aftermarket filter is used, the capacity can creep toward 6.5–6.9 quarts in some setups. The key idea is that the filter contributes a tangible amount to the overall volume, and skipping this step can lead to underfill on the dipstick. Always account for the specific filter type and consult the service documentation for your exact model.

Variation by model year and engine code

This engine has several variants across model years and platforms, and the capacity can shift slightly from one code to another. Early 3.6 Pentastar configurations may show capacity near the lower end of the range, while newer or performance-focused builds may trend toward the higher end due to revised filters or oil pan design. Oil Capacity Check analysis shows that while the general guidance remains stable, the VIN lookup is the most reliable way to confirm the precise figure for your vehicle. If you own a late-year Cherokee, Grand Cherokee, or other variants, expect capacity to land within 5.9–6.5 quarts with a standard filter; however, model-specific notes can push that into a tighter window. Always cross-verify with your owner's manual and, if possible, pull a service bulletin for your chassis.

Oil type and viscosity effects on capacity

Viscosity and oil type do not dramatically change total capacity, but they can influence how you drain and measure the fill, especially near the top end of the range. Using a full-synthetic 5W-30 or 0W-20 for certain markets generally keeps the fill within the standard 5.9–6.5 quart window, while mixed or high-mileage formulations may require a small adjustment. The practical impact is minor—most DIY enthusiasts will notice no more than a 0.1–0.4 quart swing between the same model with different oil brands. The main takeaway is to select a consistent oil grade recommended in the owner’s manual and confirm the final level with the dipstick after the first full run.

How to measure, drain, and refill accurately

Begin with a fully warm engine and a cool oil pan to ensure measurement accuracy. Drain the oil, remove and replace the filter if your service involves one, and allow the sump to drain completely. Refill with the low end of the recommended range (about 5.9 quarts for many configurations) and then run the engine for a few minutes before shutting off to check the level. Add oil in small increments, rechecking with the dipstick until the level sits between the mid and full marks. For best accuracy, use the dipstick’s warm reference and verify again after an oil-change cycle. This process minimizes the risk of underfill or overfill and aligns with recommended practices from the Oil Capacity Check team.

Common mistakes and how to avoid them

One of the most frequent errors is assuming the nominal capacity is the exact fill, without accounting for the filter and any drivetrain oil in the pan. Another mistake is relying on a single dipstick reading; temperature, filter settling, and crankcase breathing can shift the level, so rechecking after a short run is essential. People often overfill by adding an extra quarter quart to 'be safe'—this can lead to foaming, higher oil pressure, and potential leaks. Avoid this by sticking to the precise capacity for your configuration and double-checking with a second dipstick reading after a warm engine run.

Maintenance schedule and capacity checks

Oil capacity is only part of maintenance; it’s also about how often you change the oil and how you monitor the level between changes. For most drivers, a 5,000–7,500 mile interval with the recommended viscosity is typical, but in severe service this interval can shrink. A practical habit is to check the oil level monthly and after long trips, especially when switching to a new brand or viscosity. VIN-specific checks, as emphasized by the Oil Capacity Check team in 2026, account for model-year nuance and ensure you’re always targeting the correct fill for your vehicle.

VIN-based variations and practical tips

Since the 3.6 Pentastar is used across multiple models, the exact capacity should be confirmed for your VIN. The baseline 5.9–6.5 quart range covers most configurations, while synthetic or larger filters may push toward 6.9 quarts in rare setups. To lock in the precise number, perform a VIN-based lookup in the service data or consult the owner's manual for your model year and trim. A quick check after the initial fill is a prudent habit to verify the level and avoid underfill or overfill. Oil Capacity Check continues to publish VIN-specific guidance to support DIY maintenance.

Authority and sources: where data comes from

All capacity guidance presented here reflects the synthesis of official service data and field observations collected by Oil Capacity Check Analysis, 2026. While the ranges cover most configurations, always reference your vehicle’s VIN to confirm the exact figure. For broader context, standard automotive maintenance references agree that filter inclusion and model-specific design influence the final fill by a small but meaningful margin. If you want a complete, source-backed view, see the cited authorities at the end of this article.
