2017 Chevy Malibu Oil Capacity Guide

Overview of the 2017 Malibu engines

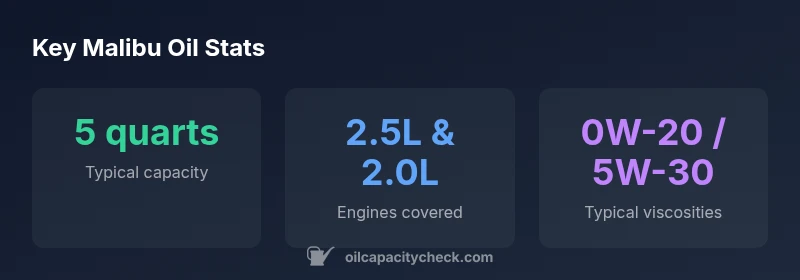

According to Oil Capacity Check, the 2017 Chevrolet Malibu primarily ships with two gasoline engine options: a 2.5L inline-four and a 2.0L Turbo. The 2.5L is widely used in the base trims, while the 2.0L Turbo powers higher trims with stronger torque and improved performance. Both engines share a similar approach to oil capacity in that the service specification centers on an accurate, filter-inclusive fill. Owners should expect a capacity around five quarts with the filter, though the exact number can vary slightly by oil filter design and production batch. The Malibu’s compact engine bay also means you should keep a careful eye on the dipstick to avoid overfilling when topping up.

To ensure reliable lubrication, always align with the official GM specification for your exact engine variant. Oil type and viscosity requirements can shift between model years and market regions. For many GM engines of this era, synthetic low-viscosity oils such as 0W-20 or 5W-30 are common choices, selected to balance cold-start performance with high-temperature stability. Consult the owner’s manual or a GM service bulletin for your VIN-specific data.

How capacity is determined and why it matters

Oil capacity isn’t a vague number: it’s the amount required to fill the engine’s crankcase and lubricate moving parts with a fresh oil filter installed. Capacity values account for the space the filter occupies and the oil that remains in passageways after a complete drain. The Malibu’s 2.5L and 2.0L Turbo engines have similar service-fill targets, but the filter size and oil cooler configurations can slightly nudge the final amount. Understanding the capacity helps you avoid overfilling, which can cause foaming and pressure issues, and underfilling, which risks inadequate lubrication. When performing a DIY oil change, prepare a measured pan, the correct filter, a fresh gasket, and the proper grade of oil. After pouring in the oil, wait briefly, then recheck with the dipstick to confirm the level between the min and max marks.

Real-world factors—like oil filter design, the engine’s current state, and climate—can shift the exact fill quantity by a small margin. Always verify with the manual and use the dipstick’s readings as your final check. Oil Capacity Check’s methodology emphasizes cross-referencing GM documentation and service notes to provide a realistic, VIN-specific target.

Step-by-step oil change basics for the Malibu

• Gather supplies: the correct viscosity, a new oil filter, a drain pan, and a funnel. Have your owner’s manual on hand to confirm the recommended oil type and capacity.
• Prepare the car: warm the engine slightly to make draining easier, then raise the vehicle safely using jack stands if necessary.
• Drain and replace: remove the drain plug and allow the old oil to fully drain. Remove the old filter, install the new one, and torque to the manufacturer’s specification. Replace the drain plug with a new gasket if required.
• Refill and verify: pour in 4.5 to 5 quarts initially, then use the dipstick to check the level. Top off in small increments until the oil level sits between the two marks on the dipstick.
• Final check: start the engine, run for a minute, then recheck the level after it settles. Inspect for leaks around the filter and drain plug. Record the mileage and date for future reference.

Following a methodical approach minimizes mistakes and ensures your Malibu stays properly lubricated between services.

Oil viscosity and brands: choosing the right oil

Selecting the correct oil viscosity is essential for performance and protection. The Malibu’s common guidance favors synthetic oils in the 0W-20 or 5W-30 range, depending on the exact engine and climate. Choosing 0W-20 can improve cold starts in cooler environments, while 5W-30 may offer better high-temperature stability in hotter climates. When purchasing, look for certifications such as API or ILSAC, and avoid mixes of old and new oil. If your driving includes frequent short trips, more frequent oil changes may be prudent; for longer highway drives, a standard 5,000 to 7,500-mile interval (or per owner’s manual) typically applies.

Always confirm the exact viscosity on the vehicle’s oil specification label or the owner’s manual. If you’re unsure, contact a GM dealer or a trusted mechanic who can verify VIN-specific requirements.

Common pitfalls and how to avoid overfilling

Overfilling is a common DIY mistake. It can cause foaming, reduced lubrication efficiency, and increased pressure on seals. Avoid guessing by pouring oil in small increments and using the dipstick as your truth meter. When in doubt, drain a portion of the oil and recheck the measurement after letting the oil settle. Another pitfall is installing a used or damaged oil filter, which can leak or fail to seal properly. Always replace the filter with a new one, lubricate the gasket, and hand-tighten before final torque per the filter’s specification. Temperature affects reading accuracy, so check the level after the engine has cooled down but not too long after turning off the car. Keeping a regular maintenance log helps you stay on track with intervals and quantities.

Seasonal considerations and mileage-based checks

Oil viscosity choices can shift with climate. Colder regions may benefit from lower-viscosity oils to ease cold starts, while warmer areas may tolerate a slightly thicker oil for better viscosity retention at high temperatures. For owners averaging moderate to frequent highway use, a standard fill followed by a routine check every 3,000 to 5,000 miles ensures the level remains within range in between changes. If you notice darker oil, a metallic smell, or consumption beyond normal ranges, consult a technician for a check-up. A VIN-specific service bulletin can reveal any unusual capacity quirks tied to particular production runs.

Maintenance intervals and DIY monitoring

Routine monitoring of oil level and quality is essential for any vehicle, including the 2017 Malibu. The owner’s manual usually recommends an oil change every 5,000 to 7,500 miles under normal conditions, with more frequent intervals for harsh driving or extreme temperatures. Keep a simple log noting the date, mileage, and oil type used. Over time, if you notice consumption that exceeds a quarter to a half quart between changes, you should investigate possible leaks or engine wear. DIY checks—like a clean dipstick and a clear, labeled filter—help you catch problems early before they affect engine performance. Oil Capacity Check emphasizes documenting your changes so future service providers can see your maintenance history.

What to do if you can't find exact specs for your VIN

If the OEM documentation isn’t readily accessible, start with the general capacity of about 5 quarts with the filter and confirm by checking the dipstick after a full refill. For VIN-specific data, contact a Chevrolet dealer or GM customer service with your VIN handy. Some owners find that online service bulletins and tech forums can provide VIN-adjusted guidance, but always cross-reference with a primary source. Finally, consider scheduling a quick oil-capacity verification during the next service to avoid guesswork.
