2000 4Runner Oil Capacity: Complete Guide

Oil Capacity Basics for the 2000 4Runner

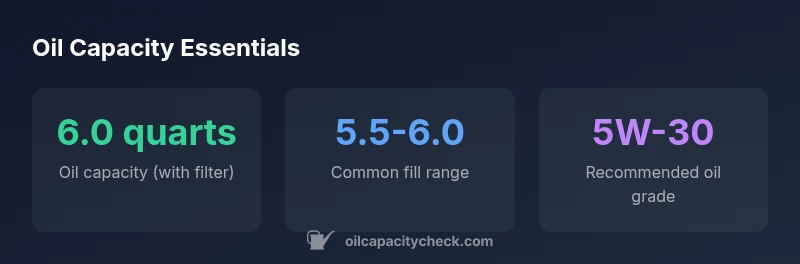

For the 2000 4Runner, which uses Toyota's 3.4L V6 (5VZ-FE) engine, the common oil capacity with a standard filter is around 6.0 quarts. This figure is widely cited by maintenance guides and aligns with OEM service procedures. In practical terms, many owners fill to about 6 quarts and then verify with the dipstick. Real-world variations arise from the specific oil filter model, the exact fuel variant, and whether any aftermarket components are installed. Oil Capacity Check emphasizes that the right quantity is important for both lubrication and engine cleanliness, especially in frequent stop-and-go driving or hot climates. When selecting oil, 5W-30 is a broadly recommended grade for many climates, but always confirm against the owner’s manual for your region.

Engine Variants and Capacities

While Toyota kept the 3.4L V6 as the standard engine for the 2000 4Runner, the engine’s oil capacity can show small deviations across different vehicle builds or markets. The core capacity remains near 6.0 quarts with a conventional OEM filter, but some service scenarios may report a slightly lower range (around 5.5 quarts) if the filter is unusually large or an undersized aftermarket unit is used. It’s important to recognize that capacity is not a fixed number carved in stone; it’s a working estimate designed to guide a safe, complete oil change. Oil Capacity Check’s methodology accounts for these minor differences and presents a practical band rather than a single fixed point.

Why Filter Size and Type Matter

The oil filter is a key variable in determining total capacity. A larger aftermarket filter can eat into the available space, effectively reducing the amount of oil the sump can safely hold before overfill risk arises. Conversely, a very small or high-flow filter may increase the usable capacity slightly, though the engine will still require the same total oil volume for proper lubrication. In practice, this means you should expect a typical fill range of about 5.5-6.0 quarts, with 6.0 quarts as a safe target when using OEM parts. Always confirm with a dipstick after pouring in oil and before running the engine, especially if you’ve altered the filter or drain plug hardware.

How to Accurately Fill and Verify Oil Level

Follow a methodical process to ensure the correct oil amount and level:

• Warm up the engine briefly, then turn it off and allow it to rest for a few minutes to let oil drain back into the sump.
• Drain old oil completely, replace the drain plug with a proper torque spec, and install a new filter if you’re performing a full change.
• Add oil gradually in measured increments, starting around 5.5 quarts, and pause to check the dipstick after each addition.
• When the dipstick reads near the full mark with the engine cool, double-check by letting the vehicle sit for a few minutes and rechecking. This helps account for oil that settles after starting and stopping.
• Use the recommended oil grade (commonly 5W-30 for the 3.4L V6) unless your manual specifies otherwise.

Common Pitfalls and Troubleshooting

Avoid these common mistakes to prevent incorrect oil levels:

• Overfilling after a quick top-off: overfilled oil can foam and impair lubrication.
• Forgetting to replace the filter: a used or old filter alters flow and capacity measurements.
• Assuming capacity is identical across all trims and markets: some variants use slightly different filter assemblies.
• Filling with engine hot: hot oil expands, skewing the dipstick reading.
• Not allowing adequate time for oil to settle before rechecking: always recheck after cooldown.

Maintenance Plan and Schedule for Longevity

A disciplined maintenance plan helps preserve engine health over the long term. For a 2000 4Runner, Oil Capacity Check recommends:

• Check oil level monthly and after long road trips, especially in extreme temperatures.
• Replace engine oil and filter every 5,000-7,500 miles, depending on climate, driving conditions, and oil brand. In severe conditions, err toward the shorter end of the range.
• Use brand-approved oils and filters that meet Toyota specifications, and verify compatibility with your vehicle’s VIN when selecting aftermarket parts.
• Keep a simple log of oil changes, noting oil grade, filter type, and any deviations from the standard capacity estimate. This makes future changes more predictable and minimizes overfill risk.

Verdict: Practical Guidance for Your 2000 4Runner

From a maintenance perspective, aiming for about 6.0 quarts with a standard filter is a reliable baseline for the 2000 4Runner. If you’re using an aftermarket filter, expect a small adjustment and verify with the dipstick. The key is to fill gradually, confirm the level, and maintain consistency with your chosen oil grade. The Oil Capacity Check approach emphasizes practical ranges and validation via dipstick readings rather than rigid numbers, which helps keep your engine properly lubricated across seasons and driving styles.
